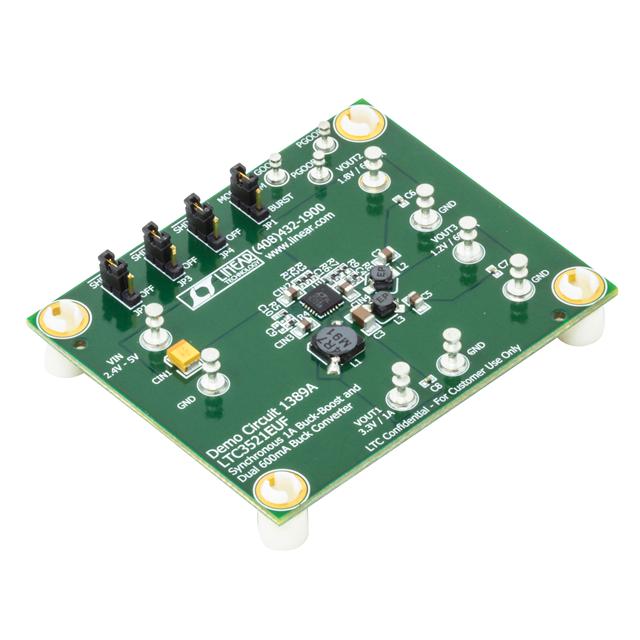

Analog Devices Inc. DC1389A

DC1389A Analog Devices Inc.
Analog Devices Inc.

Product Information

Main Purpose:
DC/DC, Step Up or Down
HTSUS:
8473.30.1180
RoHS Status:
ROHS3 Compliant
Voltage - Input:
2.4V ~ 5V
Frequency - Switching:
1MHz
REACH Status:
REACH Unaffected
Current - Output:
600mA, 600mA, 800mA
Board Type:
Fully Populated
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
8 Weeks
Regulator Topology:
Buck-Boost
Utilized IC / Part:
LT3521
Series:
-
Voltage - Output:
1.2V, 1.8V, 3.3V
Supplied Contents:
Board(s)
ECCN:
EAR99
Base Product Number:
DC1389
Outputs and Type:
3, Non-Isolated
Checking for live stock

This is manufactured by Analog Devices Inc.. The manufacturer part number is DC1389A. Basic Purpose: dc/dc, step up or down. It is assigned with possible HTSUS value of 8473.30.1180. The product is rohs3 compliant. The possible product's input voltage is 2.4v ~ 5v. The switching frequency of the standard product is 1mhz. In addition, it is reach unaffected. While, the output current includes 600ma, 600ma, 800ma. It is a fully populated type. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 8 weeks standard lead time. The product offers buck-boost regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. Furthermore, the output voltage is 1.2v, 1.8v, 3.3v. The product is also supplied with contents, such as board(s). The product is designated with the ear99 code number. Moreover, it corresponds to dc1389, a base product number of the product. The output and type include 3, non-isolated.

pdf icon
DC1389A Quick Start Guide(Datasheets)
pdf icon
LTC3521(Datasheets)
pdf icon
DC1389A Schematic(Design Resources)
