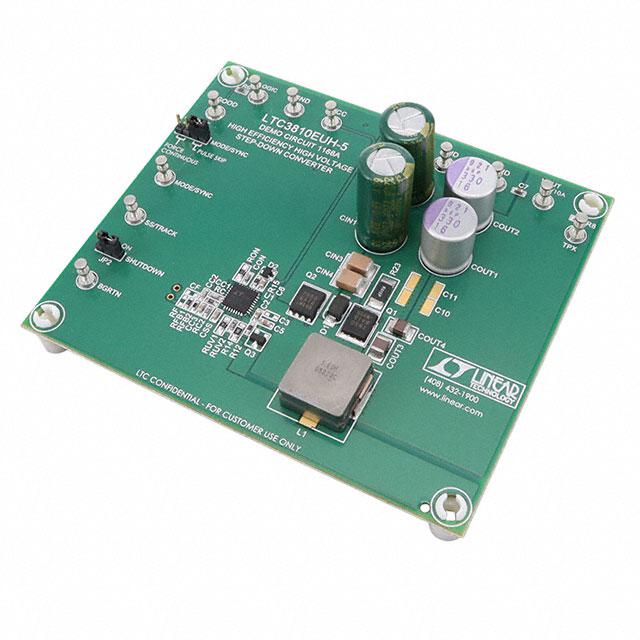

Analog Devices Inc. DC1168A

DC1168A Analog Devices Inc.
Analog Devices Inc.

Product Information

Main Purpose:
DC/DC, Step Down
HTSUS:
8473.30.1180
RoHS Status:
ROHS3 Compliant
Voltage - Input:
14V ~ 60V
Frequency - Switching:
250kHz
REACH Status:
REACH Unaffected
Current - Output:
10A
Board Type:
Fully Populated
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
8 Weeks
Regulator Topology:
Buck
Utilized IC / Part:
LTC3810-5
Series:
-
Voltage - Output:
12V
Supplied Contents:
Board(s)
ECCN:
EAR99
Base Product Number:
DC1168
Outputs and Type:
1, Non-Isolated
Checking for live stock

This is manufactured by Analog Devices Inc.. The manufacturer part number is DC1168A. Basic Purpose: dc/dc, step down. It is assigned with possible HTSUS value of 8473.30.1180. The product is rohs3 compliant. The possible product's input voltage is 14v ~ 60v. The switching frequency of the standard product is 250khz. In addition, it is reach unaffected. While, the output current includes 10a. It is a fully populated type. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 8 weeks standard lead time. The product offers buck regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. Furthermore, the output voltage is 12v. The product is also supplied with contents, such as board(s). The product is designated with the ear99 code number. Moreover, it corresponds to dc1168, a base product number of the product. The output and type include 1, non-isolated.

pdf icon
DC1168A Schematic(Design Resources)
pdf icon
DC1168A Quick Start Guide(Datasheets)
pdf icon
LTC3810-5 Datasheet(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search DC1168A on website for other similar products.
We accept all major payment methods for all products including ET20156641. Please check your shopping cart at the time of order.
You can order Analog Devices Inc. brand products with DC1168A directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices Inc. DC1168A. You can also check on our website or by contacting our customer support team for further order details on Analog Devices Inc. DC1168A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20156641 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET20156641.
Yes. We ship DC1168A Internationally to many countries around the world.
