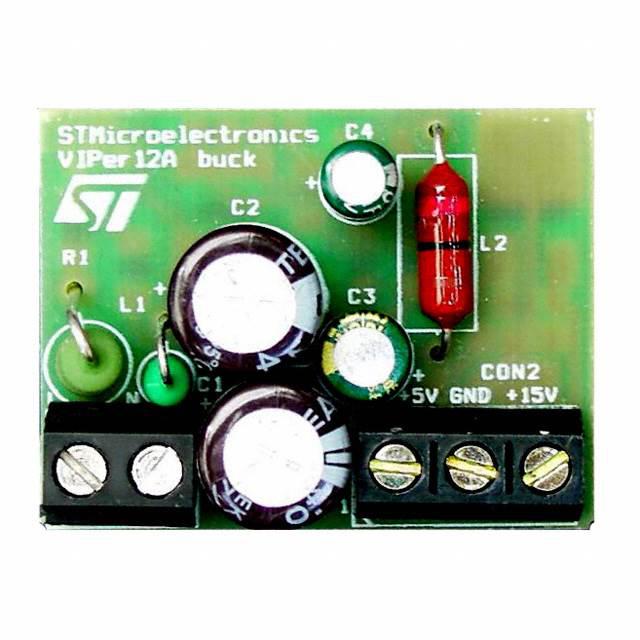

STMicroelectronics STEVAL-ISA005V1

STEVAL-ISA005V1 STMicroelectronics
STMicroelectronics

Product Information

Main Purpose:
AC/DC, Primary Side
HTSUS:
8504.40.9580
RoHS Status:
RoHS non-compliant
Voltage - Input:
85 ~ 264 VAC
Frequency - Switching:
60kHz
REACH Status:
REACH Unaffected
Current - Output:
100mA, 60mA
Manufacturer:
STMicroelectronics
Board Type:
Fully Populated
Moisture Sensitivity Level (MSL):
Not Applicable
Regulator Topology:
Buck
Utilized IC / Part:
VIPer12A
Series:
VIPER™
Voltage - Output:
5V, 15V
Packaging:
Bulk
ECCN:
EAR99
Supplied Contents:
Board(s)
Power - Output:
1.6 W
Outputs and Type:
2, Non-Isolated
Checking for live stock

This is manufactured by STMicroelectronics. The manufacturer part number is STEVAL-ISA005V1. Basic Purpose: ac/dc, primary side. It is assigned with possible HTSUS value of 8504.40.9580. The product is rohs non-compliant. The possible product's input voltage is 85 ~ 264 vac. The switching frequency of the standard product is 60khz. In addition, it is reach unaffected. While, the output current includes 100ma, 60ma. The stmicroelectronics's product offers user-desired applications. It is a fully populated type. Its typical moisture sensitivity level is not applicable. The product offers buck regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. The product viper™, is a highly preferred choice for users. Furthermore, the output voltage is 5v, 15v. In addition, bulk is the available packaging type of the product. The product is designated with the ear99 code number. The product is also supplied with contents, such as board(s). The product has an output power 1.6 w. The output and type include 2, non-isolated.

pdf icon
STEVAL-ISA005V1 Schematic(Design Resources)
pdf icon
STEVAL-ISA005V1 Data Brief(Datasheets)
pdf icon
VIPER12A-E(Datasheets)
