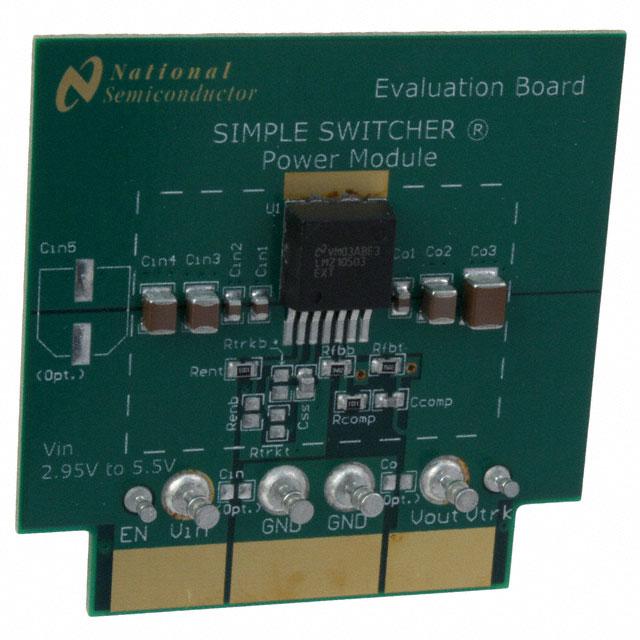

Texas Instruments LMZ10503EXTEVAL/NOPB

LMZ10503EXTEVAL-NOPB Texas Instruments LMZ10503EXTEVAL/NOPB
Texas Instruments

Product Information

Main Purpose:
DC/DC, Step Down
HTSUS:
9030.90.6600
RoHS Status:
ROHS3 Compliant
Voltage - Input:
2.95V ~ 5.5V
Frequency - Switching:
1MHz
REACH Status:
REACH Unaffected
Current - Output:
3A
Board Type:
Fully Populated
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Regulator Topology:
Buck
Utilized IC / Part:
LMZ10503EXT
Series:
SIMPLE SWITCHER®
Voltage - Output:
2.5V
Supplied Contents:
Board(s)
ECCN:
EAR99
Base Product Number:
LMZ10503
Outputs and Type:
1, Non-Isolated
Checking for live stock

This is manufactured by Texas Instruments. The manufacturer part number is LMZ10503EXTEVAL/NOPB. Basic Purpose: dc/dc, step down. It is assigned with possible HTSUS value of 9030.90.6600. The product is rohs3 compliant. The possible product's input voltage is 2.95v ~ 5.5v. The switching frequency of the standard product is 1mhz. In addition, it is reach unaffected. While, the output current includes 3a. It is a fully populated type. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). The product offers buck regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. The product simple switcher®, is a highly preferred choice for users. Furthermore, the output voltage is 2.5v. The product is also supplied with contents, such as board(s). The product is designated with the ear99 code number. Moreover, it corresponds to lmz10503, a base product number of the product. The output and type include 1, non-isolated.
