Power Management Function:
Buck Converter
Kit Name:

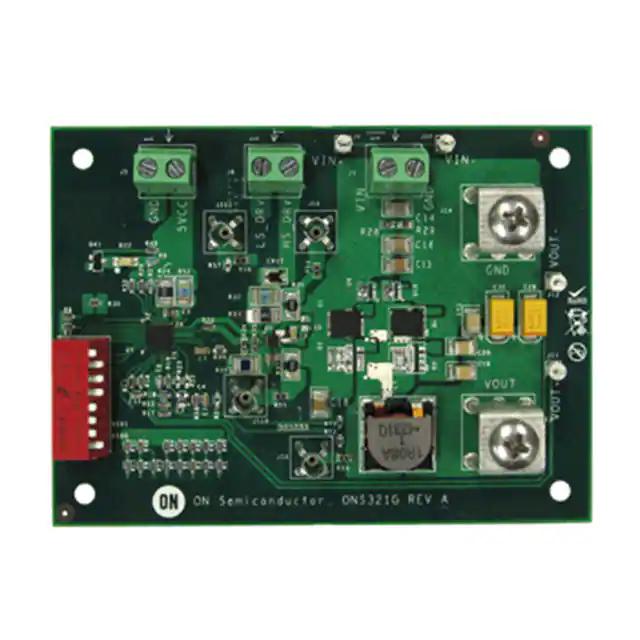

MOSFET Evaluation Board
Featured Device:
NCP5386BMNR2G, NCP5911MNTBG, NTD4904N-1G, NTD4906N-1G, NTD4909N-1G, NTD4910N-1G, NTD4963N-1G, NTD4965N-1G, NTD4969N-1G, NTD4970N-1G, NTMFS4921NT1G, NTMFS4922NET1G, NTMFS4923NET1G, NTMFS4925NET1G, NTMFS4925NT1G, NTMFS4926NET1G, NTMFS4926NT1G, NTMFS4927NT1G, NTMFS4933NT1G, NTMFS4934NT1G, NTMFS4935NT1G, NTMFS4936NT1G, NTMFS4937NT1G, NTMFS4939NT1G, NTMFS4941NT1G, NTMFS4943NT1G, NTMFS4946NT1G, NTMFS4955NT1G, NTMFS4983NFT1G, NTMFS4985NFT1G, NTTFS4928NTAG, NTTFS4929NTAG, NTTFS4930NTAG, NTTFS4932NTAG, NTTFS4937NTAG, NTTFS4939NTAG
Kit Classification:
Evaluation Board
For Use With:
MOSFET
Manufacturer Standard Lead Time:
12 Weeks
Base Part Number:
ONS321
Board Type:
Fully Populated
Main Purpose:
DC/DC, Step Down
Utilized IC / Part:
NCP5386
Customer Reference:
Regulator Topology:
Buck
Voltage - Output:
0.8V ~ 1.55V
Packaging:
Box
Current - Output:
25A
Frequency - Switching:
330kHz
Supplied Contents:
Board(s)
Voltage - Input:
8V ~ 19V
Detailed Description:
NCP5386 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Outputs and Type:
1, Non-Isolated
Manufacturer:
ON Semiconductor
