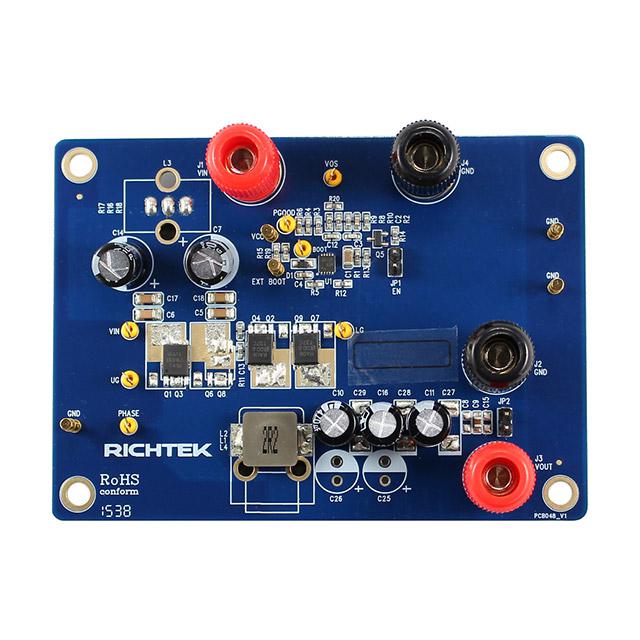

Richtek USA Inc. EVB_RT8130BGQW

EVB_RT8130BGQW Richtek USA Inc.
Richtek USA Inc.

Product Information

Main Purpose:
DC/DC, Step Down
HTSUS:
8534.00.0020
RoHS Status:
ROHS3 Compliant
Note:
-
Voltage - Input:
19V
Frequency - Switching:
300kHz
title:
EVB_RT8130BGQW
REACH Status:
REACH Unaffected
Current - Output:
7A
Manufacturer:
Richtek USA Inc.
Board Type:
Fully Populated
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Regulator Topology:
Buck
Utilized IC / Part:
RT8130B
Series:
-
Voltage - Output:
12V
Packaging:
Box
Supplied Contents:
Board(s)
ECCN:
EAR99
Base Product Number:
RT8130
Outputs and Type:
1, Non-Isolated
Checking for live stock

This is manufactured by Richtek USA Inc.. The manufacturer part number is EVB_RT8130BGQW. Basic Purpose: dc/dc, step down. It is assigned with possible HTSUS value of 8534.00.0020. The product is rohs3 compliant. The possible product's input voltage is 19v. The switching frequency of the standard product is 300khz. In addition, it is reach unaffected. While, the output current includes 7a. The richtek usa inc.'s product offers user-desired applications. It is a fully populated type. Its typical moisture sensitivity level is 3 (168 hours). The product offers buck regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. Furthermore, the output voltage is 12v. In addition, box is the available packaging type of the product. The product is also supplied with contents, such as board(s). The product is designated with the ear99 code number. Moreover, it corresponds to rt8130, a base product number of the product. The output and type include 1, non-isolated.

pdf icon
PCB048 Schematic(Design Resources)
pdf icon
EVB_RT8130BGQW BOM(Design Resources)
pdf icon
EVB_RT8130BGQW User Guide(Datasheets)
pdf icon
RT8130B(Datasheets)
pdf icon
RoHS Declaration(Environmental Information)
pdf icon
Richtek REACH(Environmental Information)
