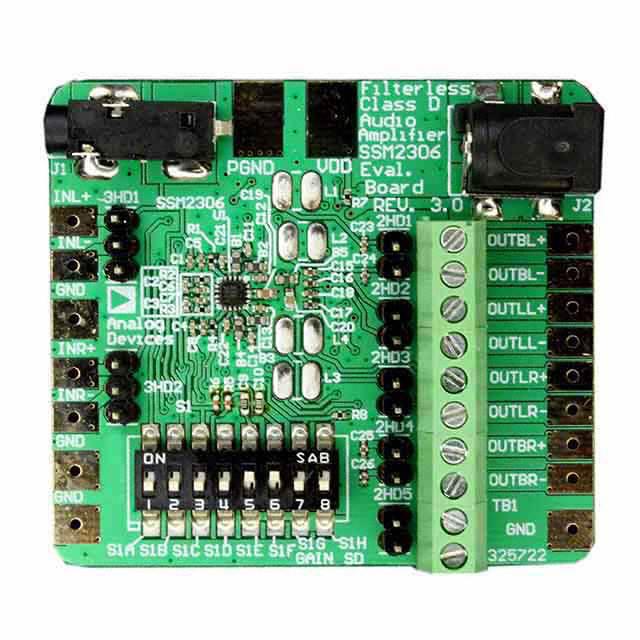

Analog Devices Inc. SSM2306-EVALZ

SSM2306-EVALZ Analog Devices Inc.
Analog Devices Inc.

Product Information

Board Type:
Fully Populated
Utilized IC / Part:
SSM2306
HTSUS:
8473.30.1180
Package:
Box
Series:
-
Max Output Power x Channels @ Load:
2.4W x 2 @ 4Ohm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Output Type:
2-Channel (Stereo)
Voltage - Supply:
2.5V ~ 5V
Supplied Contents:
Board(s)
Amplifier Type:
Class D
Base Product Number:
SSM2306
ECCN:
EAR99
Checking for live stock

This is manufactured by Analog Devices Inc.. The manufacturer part number is SSM2306-EVALZ. It is a fully populated type. Additionally, [Utilised IC / Part] is the used part of the product. It is assigned with possible HTSUS value of 8473.30.1180. It is shipped in box package . It has a maximum output power into channels at given loads, such as 2.4w x 2 @ 4ohm. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, it has a2-channel (stereo) output. It has optimum voltage supply of 2.5v ~ 5v. The product is also supplied with contents, such as board(s). It is a sort of a class d amplifier. Moreover, it corresponds to ssm2306, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Analog Audio Input, Class-D Output with ADAU1701, SSM2306, and ADP3336 (CN0162)(Design Resources)
pdf icon
SSM2306(Datasheets)
pdf icon
EVAL-SSM2306(Datasheets)
