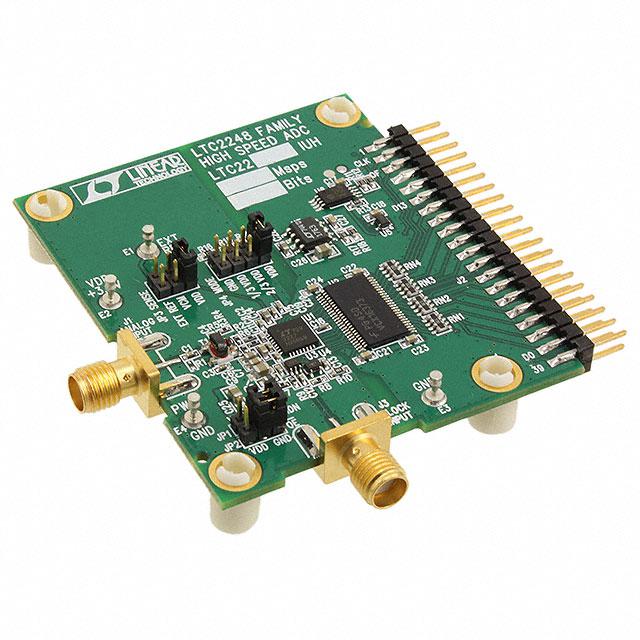

Analog Devices Inc. DC782A-H

Enrgtech Part No: ET20470981
|
Manufacturer Part No:
DC782A-H
|
Manufacturer: Analog Devices Inc.

Product Information

HTSUS:

8543.70.9860

RoHS Status:

ROHS3 Compliant

Power (Typ) @ Conditions:

120mW @ 40MSPS

Number of A/D Converters:

Number of Bits:

Sampling Rate (Per Second):

40M

REACH Status:

REACH Unaffected

Input Range:

1 ~ 2Vpp

Manufacturer:

Analog Devices Inc.

Moisture Sensitivity Level (MSL):

1 (Unlimited)

standardLeadTime:

8 Weeks

Utilized IC / Part:

LTC2227

Checking for live stock

This is manufactured by Analog Devices Inc.. The manufacturer part number is DC782A-H. It is assigned with possible HTSUS value of 8543.70.9860. The product is rohs3 compliant. Typical power at given conditions include - 120mw @ 40msps. Additionally, it also contains 1 A/D converters. The product consists of 12 bits. The product's sampling rate at per second is 40m. In addition, it is reach unaffected. Typical input range of 1 ~ 2vpp. The analog devices inc.'s product offers user-desired applications. Its typical moisture sensitivity level is 1 (unlimited). It has a long 8 weeks standard lead time. Additionally, [Utilised IC / Part] is the used part of the product. It acts as a parallel data interface. In addition, box is the available packaging type of the product. The product is also supplied with contents, such as board(s). Moreover, it corresponds to dc782a, a base product number of the product. The product is designated with the ear99 code number.

DC782A Schematic(Design Resources)

DC782A Design Files(Design Resources)

LTC2228/27/26(Datasheets)

DC782 Quick Start Guide(Datasheets)
