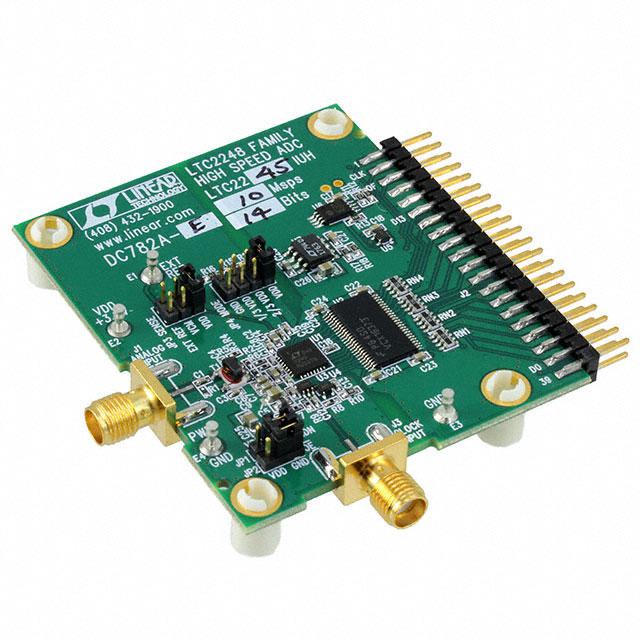

Analog Devices Inc. DC782A-E

DC782A-E Analog Devices Inc.
Analog Devices Inc.

Product Information

HTSUS:
8473.30.1180
RoHS Status:
ROHS3 Compliant
Power (Typ) @ Conditions:
60mW @ 10MSPS
Number of A/D Converters:
1
Number of Bits:
14
Sampling Rate (Per Second):
10M
REACH Status:
REACH Unaffected
Input Range:
1 ~ 2Vpp
Manufacturer:
Analog Devices Inc.
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
8 Weeks
Utilized IC / Part:
LTC2245
Data Interface:
Parallel
Series:
-
Packaging:
Box
Supplied Contents:
Board(s)
Base Product Number:
DC782A
ECCN:
EAR99
Checking for live stock

This is manufactured by Analog Devices Inc.. The manufacturer part number is DC782A-E. It is assigned with possible HTSUS value of 8473.30.1180. The product is rohs3 compliant. Typical power at given conditions include - 60mw @ 10msps. Additionally, it also contains 1 A/D converters. The product consists of 14 bits. The product's sampling rate at per second is 10m. In addition, it is reach unaffected. Typical input range of 1 ~ 2vpp. The analog devices inc.'s product offers user-desired applications. Its typical moisture sensitivity level is 1 (unlimited). It has a long 8 weeks standard lead time. Additionally, [Utilised IC / Part] is the used part of the product. It acts as a parallel data interface. In addition, box is the available packaging type of the product. The product is also supplied with contents, such as board(s). Moreover, it corresponds to dc782a, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
DC782A Schematic(Design Resources)
pdf icon
DC782A Design Files(Design Resources)
pdf icon
LTC2245(Datasheets)
pdf icon
DC782 Quick Start Guide(Datasheets)
