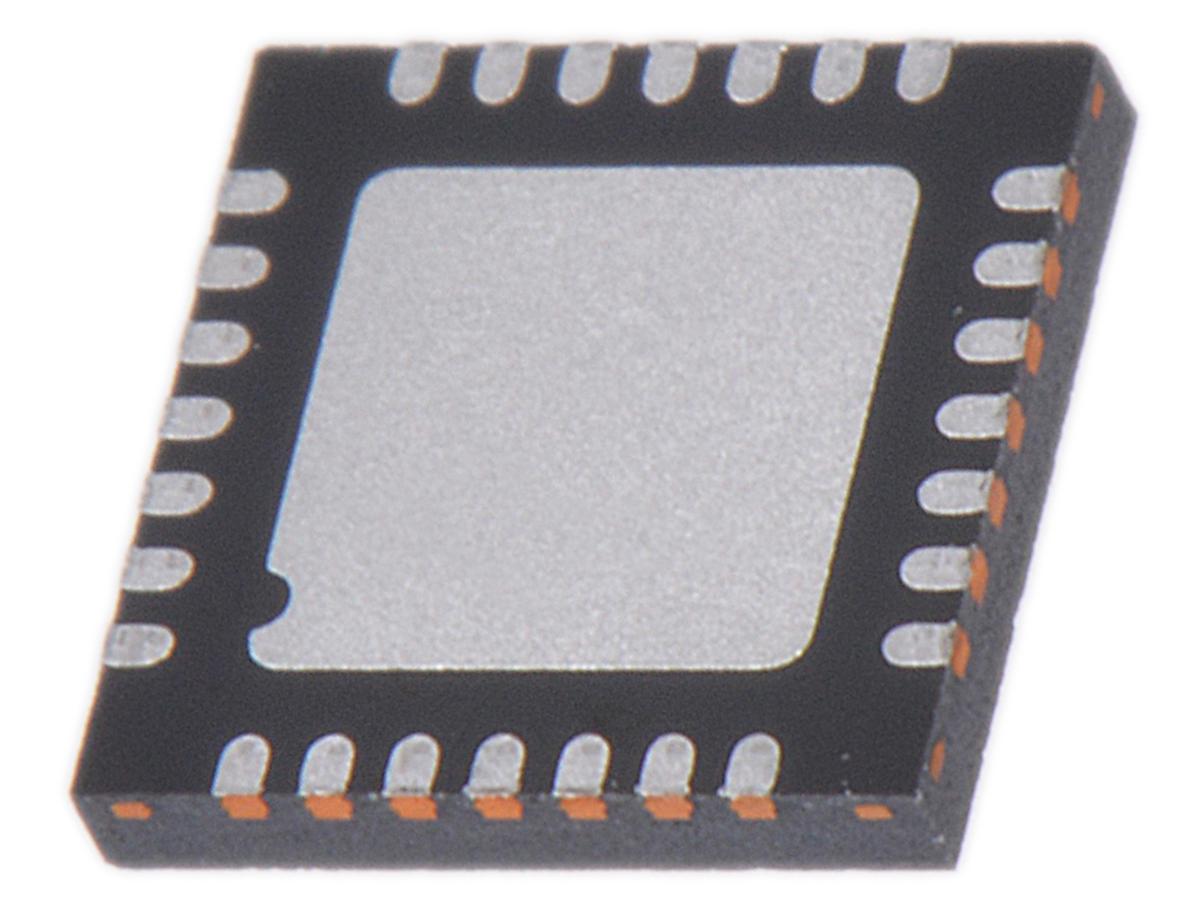

Analog Devices ADE7953ACPZ Energy Meter IC, 24 bit, 28-Pin LFCSP WQ

ADE7953ACPZ Analog Devices Energy Meter IC, 24 bit, 28-Pin LFCSP WQ
ADE7953ACPZ
Analog Devices

Product Information

Conversion Rate:
6.99ksps
Dimensions:
5.1 x 5.1 x 0.75mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+85 °C
Minimum Operating Supply Voltage:
3 V
Height:
0.75mm
Width:
5.1mm
Length:
5.1mm
Package Type:
LFCSP WQ
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
3.6 V
Resolution:
24 bit
Pin Count:
28
RoHs Compliant
Checking for live stock

This is Energy Meter IC 24 bit 28-Pin LFCSP WQ manufactured by Analog Devices. The manufacturer part number is ADE7953ACPZ. Its conversion rate is 6.99ksps . The given dimensions of the product include 5.1 x 5.1 x 0.75mm. The product is available in surface mount configuration. It has a maximum operating temperature of +85 °c. While its minimum operating supply voltage is 3 v. In addition, the height is 0.75mm. Furthermore, the product is 5.1mm wide. Its accurate length is 5.1mm. The package is a sort of lfcsp wq. Whereas, the minimum operating temperature of the product is -40 °c. It has 3.6 v maximum operating supply voltage. Features 24 bit resolution. It contains 28 pins.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search ADE7953ACPZ on website for other similar products.
We accept all major payment methods for all products including ET16757546. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with ADE7953ACPZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Energy Measurement ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices ADE7953ACPZ Energy Meter IC, 24 bit, 28-Pin LFCSP WQ. You can also check on our website or by contacting our customer support team for further order details on Analog Devices ADE7953ACPZ Energy Meter IC, 24 bit, 28-Pin LFCSP WQ.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16757546 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16757546.
Yes. We ship ADE7953ACPZ Internationally to many countries around the world.
