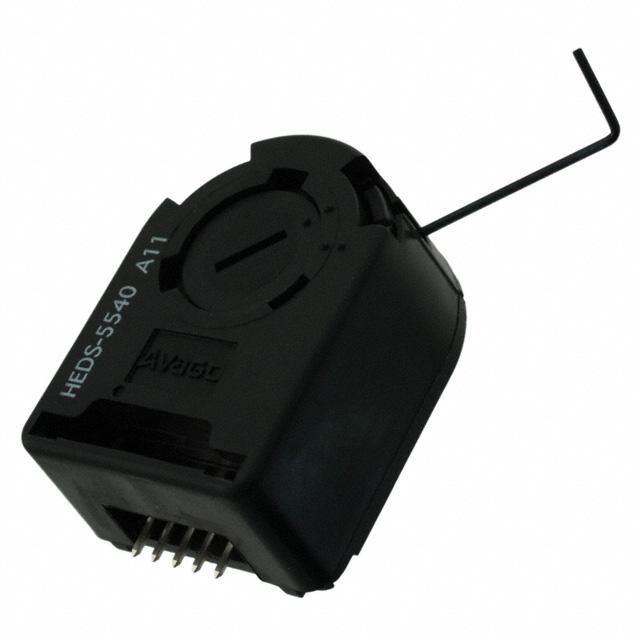

Broadcom Limited HEDS-5540#A11

HEDS-5540-A11 Broadcom Limited HEDS-5540#A11
Broadcom Limited

Product Information

HTSUS:
8543.70.4500
RoHS Status:
ROHS3 Compliant
Termination Style:
Terminal Pins
Moisture Sensitivity Level (MSL):
1 (Unlimited)
DigiKey Programmable:
Not Verified
Built in Switch:
No
title:
HEDS-5540#A11
REACH Status:
REACH Unaffected
Output Type:
Quadrature with Index (Incremental)
Manufacturer:
Broadcom Limited
Encoder Type:
Optical
Detent:
No
standardLeadTime:
26 Weeks
Pulses per Revolution:
500
Rotational Life (Cycles Min):
-
Orientation:
Vertical
Mounting Type:
Chassis Mount, Motors
Series:
HEDS
Packaging:
Bulk
Voltage - Supply:
5V
Actuator Type:
4mm Open Center
Base Product Number:
HEDS-5540
ECCN:
EAR99
Checking for live stock

This is manufactured by Broadcom Limited. The manufacturer part number is HEDS-5540#A11. It is assigned with possible HTSUS value of 8543.70.4500. The product is rohs3 compliant. Moreover, it has terminal pins terminal style. Its typical moisture sensitivity level is 1 (unlimited). Built in Switch Info: no. In addition, it is reach unaffected. Furthermore, it has aquadrature with index (incremental) output. The broadcom limited's product offers user-desired applications. The product is optical encoder. Detent Features: no. It has a long 26 weeks standard lead time. Provide 500 pulses per revolution. The product has a vertical orientation. The product is available in chassis mount, motors configuration. The product heds, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has optimum voltage supply of 5v. The product carries 4mm open center actuator. Moreover, it corresponds to heds-5540, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Optical Encoder DESIGN 08/Nov/2023(PCN Design/Specification)
pdf icon
Mult Dev Material Chgs 21/Jan/2021(PCN Design/Specification)
pdf icon
Tray Pkg Spacer Chg 19/Sep/2016(PCN Packaging)
