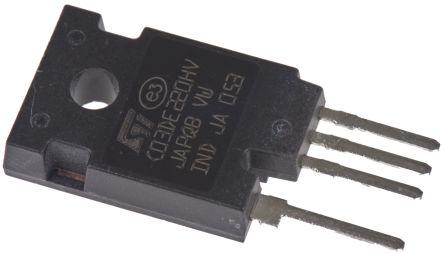

STMicroelectronics, STC03DE220HV, Emitter Switched Bipolar Transistor, NPN Aux SMPS 3 A 2200V, 4-Pin TO-247

STC03DE220HV STMicroelectronics, , Emitter Switched Bipolar Transistor, NPN Aux SMPS 3 A 2200V, 4-Pin TO-247
STC03DE220HV
STMicroelectronics

Product Information

Category:
Aux SMPS
Maximum Base Source Voltage:
30V
Minimum DC Current Gain:
15
Transistor Type:
NPN
Dimensions:
15.75 x 5.15 x 24.15mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
166 W
Maximum Gate Source Voltage:
±20 V
Maximum Operating Frequency:
150 kHz
Height:
24.15mm
Maximum Collector Source Voltage:
2200V
Width:
5.15mm
Length:
15.75mm
Package Type:
TO-247
Maximum DC Collector Current:
3 A
Maximum Base Current:
3A
Maximum Operating Temperature:
+125 °C
Pin Count:
4
RoHs Compliant
Checking for live stock

This is Emitter Switched Bipolar Transistor NPN Aux SMPS 3 A 2200V 4-Pin TO-247 manufactured by STMicroelectronics. The manufacturer part number is STC03DE220HV. It is of aux smps category . it is designed with a Maximum Base Source Voltage of 30v It features up to 15 of minimum DC current gain. The transistor is a npn type. The given dimensions of the product include 15.75 x 5.15 x 24.15mm. The product is available in through hole configuration. Provides up to 166 w maximum power dissipation. It features a maximum gate source voltage of ±20 v. It carries 150 khz of maximum operating frequency. In addition, the height is 24.15mm. It has a Maximum Collector Source Voltage of 2200v Furthermore, the product is 5.15mm wide. Its accurate length is 15.75mm. The package is a sort of to-247. Moreover, it has a maximum DC collector current of 3 a. It has a Maximum Base Current of 3a It has a maximum operating temperature of +125 °c. It contains 4 pins.
