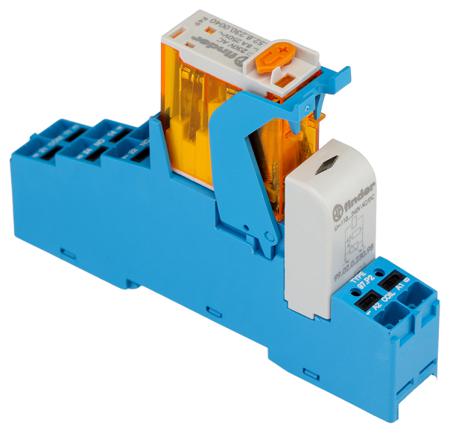

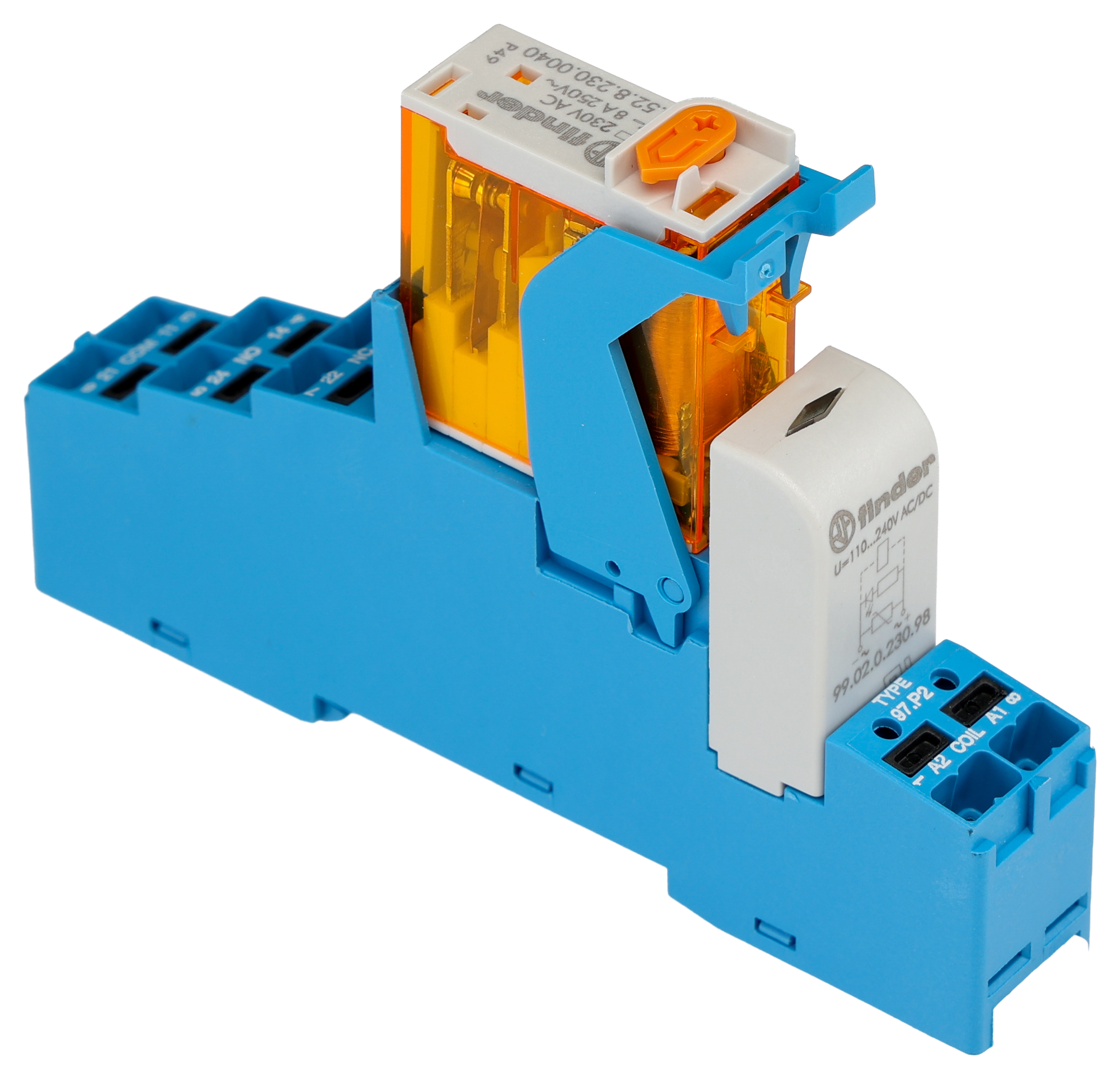

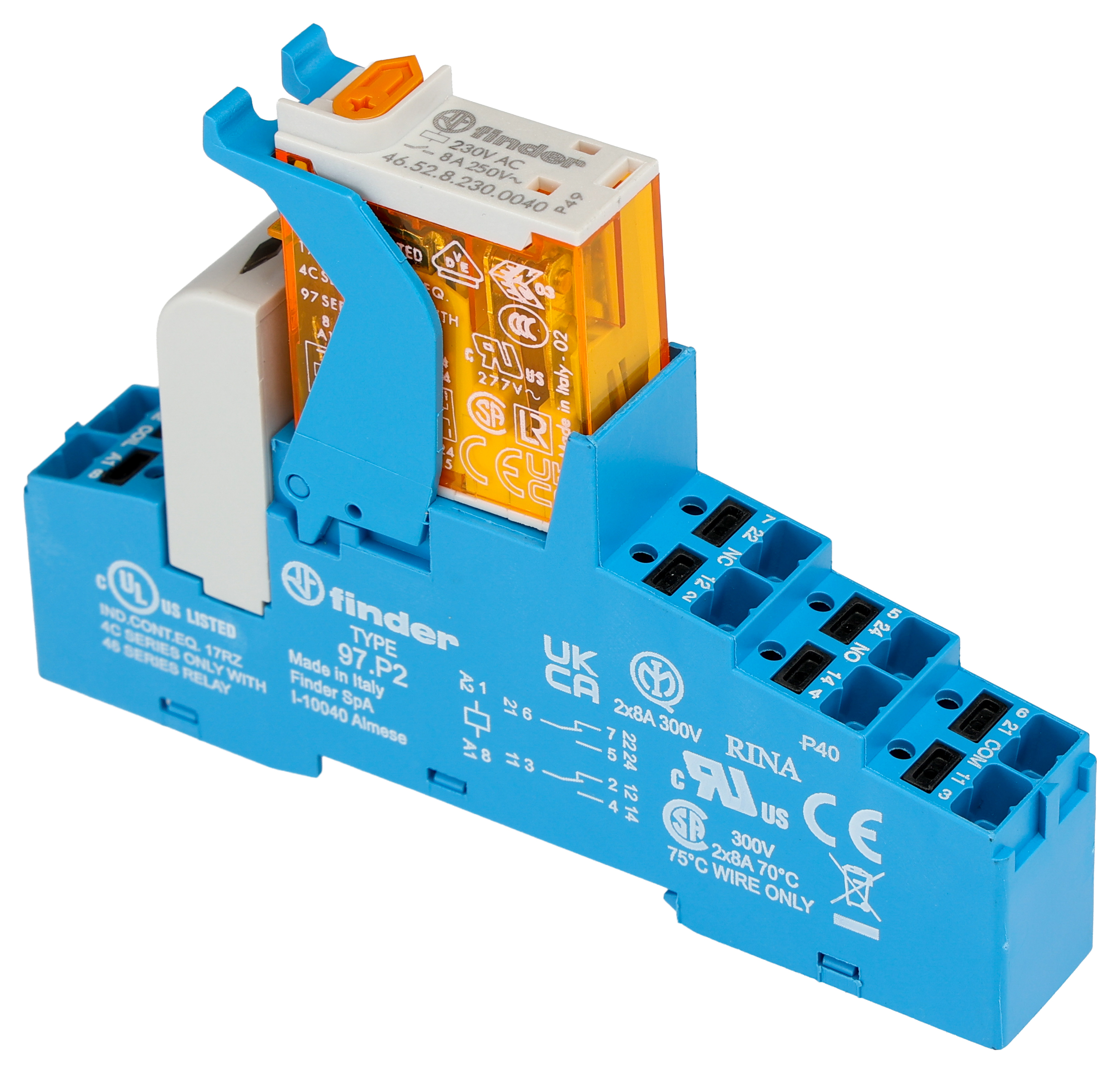

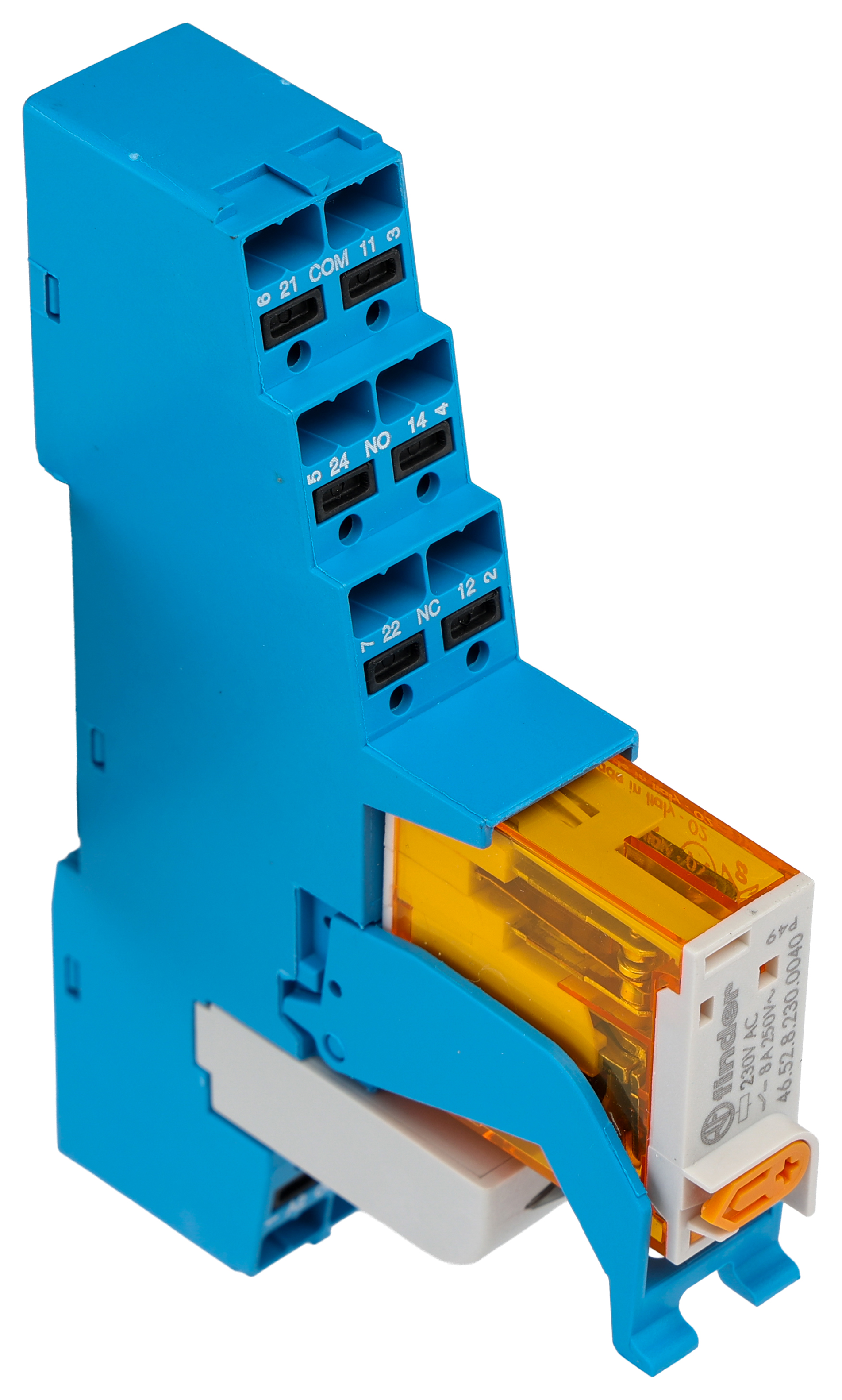

This is 4C Series[Blank] 230V ac DIN Rail Interface Relay Module DPDT-2C/0 Push In manufactured by Finder. The manufacturer part number is 4C.P2.8.230.0060SPA. The given dimensions of the product include 15.8 x 66.8 x 95.5mm. The coil voltage of the product is 230v ac. It has a (ac) 10 ms, (dc) 10ms turn On time. The given turn off time is (dc) 10 ms, (ac) 3ms. It has about 5ma input current . The product complies with all safety standards, such as ce, csa, culus, eac, gost, imq, vde. The product's switching voltage is 250 v ac → 440v ac. Moreover, it has approximately 28000ω input resistance . It has a maximum operating temperature of +70°c. The terminal is a push in type. The product has -40 → +70°c of operating temperature range. The contact is equipped with dpdt-2c/0 configuration. Its accurate length is 15.8mm. It has a general purpose relay switching relay configuration . The product also provides special features, such as ac coils or dc coils, identification label, supply status indication & coil suppression module as standard. The product is available in din rail configuration. The product 4c series, is a highly preferred choice for users. The product comes in 66.8mm depth. In addition, the height is 95.5mm. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy silver alloy materials. It has equipped with 2 poles. It has about 8a load current rating . 440v ac is the maximum voltage of the bespoke product. The product has 250v ac of minimum input voltage.
For more information please check the datasheets.
