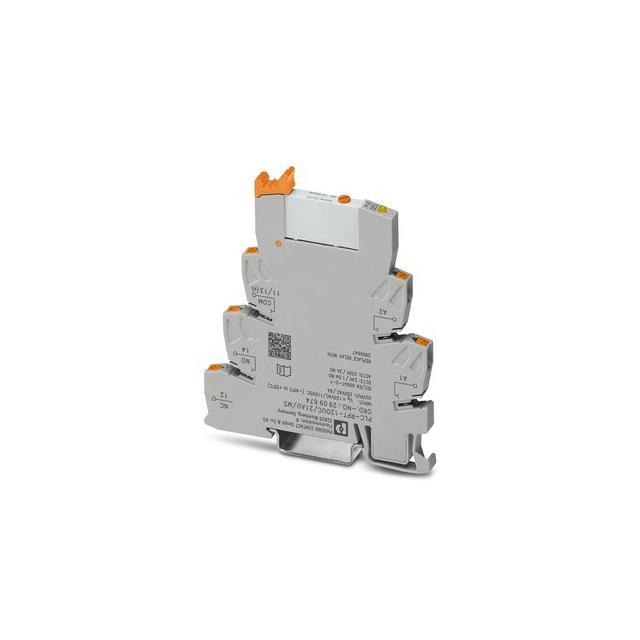

Phoenix Contact PLC-RPT Series 110V ac/dc DIN Rail Interface Relay Module, SPDT, Push In

2909674 Phoenix Contact PLC-RPT Series 110V ac/dc DIN Rail Interface Relay Module, SPDT, Push In
2909674
Phoenix Contact

Product Information

Dimensions:
94 x 80 x 6.2mm
Mounting Type:
DIN Rail
Operating Temperature Range:
-40 → +60°C
Series:
PLC-RPT-120UC/21AU/MS
Coil Voltage:
110V ac/dc
Length:
94mm
Height:
80mm
Minimum Input Voltage:
110V ac/dc
Depth:
6.2mm
Input Current:
15.3mA
Minimum Operating Temperature:
-40°C
Terminal Type:
Push In
Contact Configuration:
SPDT
Maximum Operating Temperature:
+60°C
Contact Material:
Gold Plated
Must Release Voltage:
-
HTSUS:
8536.49.0050
Coil Voltage:
120VAC/DC
Termination Style:
Spring Terminal
Operating Temperature:
-40°C ~ 55°C
Approval Agency:
CE, UKCA
Coil Resistance:
34.29 kOhms
Coil Current:
3.5 mA
Coil Type:
Non Latching
title:
2909674
Seal Rating:
-
Must Operate Voltage:
93.6 VAC/DC
Relay Type:
General Purpose
Load - Max Switching:
-
Contact Form:
SPDT (1 Form C)
Operate Time:
6 ms
Qualification:
-
standardLeadTime:
6 Weeks
Contact Rating (Current):
6 A
Features:
Lighted Indicator, Socket Included
Mounting Type:
DIN Rail
Grade:
-
Series:
PLC-RPT
Switching Voltage:
250VAC, 250VDC - Max
Release Time:
15 ms
Packaging:
Bulk
Coil Insulation:
Class A
Contact Material:
Silver Tin Oxide (AgSnO), Gold (Au)
Base Product Number:
29096
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is PLC-RPT Series 110V ac/dc DIN Rail Interface Relay Module SPDT Push In manufactured by Phoenix Contact. The manufacturer part number is 2909674. The given dimensions of the product include 94 x 80 x 6.2mm. The product is available in din rail configuration. The product has -40 → +60°c of operating temperature range. The product plc-rpt-120uc/21au/ms, is a highly preferred choice for users. The coil voltage of the product is 110v ac/dc. Its accurate length is 94mm. In addition, the height is 80mm. The product has 110v ac/dc of minimum input voltage. The product comes in 6.2mm depth. It has about 15.3ma input current . Whereas, the minimum operating temperature of the product is -40°c. The terminal is a push in type. The contact is equipped with spdt configuration. It has a maximum operating temperature of +60°c. The product is made from sturdy gold plated materials. It is assigned with possible HTSUS value of 8536.49.0050. The coil voltage of the product is 120vac/dc. Moreover, it has spring terminal terminal style. The product has -40°c ~ 55°c operating temperature range. It is approved by ce, ukca. It holds up to 34.29 kohms coil resistance. It has a coil current of 3.5 ma. The coil is a non latching type. On the other hand, 93.6 vac/dc is the given crucial/must operating voltage. This is basically a general purpose. It also has a spdt (1 form c) contact form. The operating time of the product is 6 ms. It has a long 6 weeks standard lead time. It has a contact current rating of 6 a. The splendid features of the product include lighted indicator, socket included. The product plc-rpt, is a highly preferred choice for users. The product's switching voltage is 250vac, 250vdc - max. While 15 ms is its release time. In addition, bulk is the available packaging type of the product. The coil is a class a insulation. The product is made from sturdy silver tin oxide (agsno), gold (au) materials. Moreover, it corresponds to 29096, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
2909674(Datasheets)
