Dimensions:
90 x 12.8 x 88mm
Coil Voltage:
24V
Turn On Time:
<11ms
Turn Off Time:
<10ms
Input Current:
20mA
Life:
30000000 Cycle
Standards Met:
CE, CULus, EAC, RoHS Compliant
Switching Voltage:
250V ac/dc
Maximum Operating Temperature:
+60°C
Terminal Type:
Spring Clamp
Operating Temperature Range:
-40 → +60°C
Contact Configuration:
DPDT
Depth:
12.8mm
Relay Switching Classification:
General Purpose Relay
Special Features:
Illuminated Ejection Lever, Various Protective Circuits in the Input
Mounting Type:
DIN Rail
Series:
TRZ
Input Voltage Range:
24 → 230V ac/dc
Accessory Type:
Relay Module
Length:
90mm
Height:
88mm
Minimum Operating Temperature:
-40°C
Contact Material:
Silver Alloy
Number of Poles:
2
Maximum Input Voltage:
230V ac/dc
Minimum Input Voltage:
24V ac/dc
Manufacturer Standard Lead Time:
16 Weeks
Detailed Description:

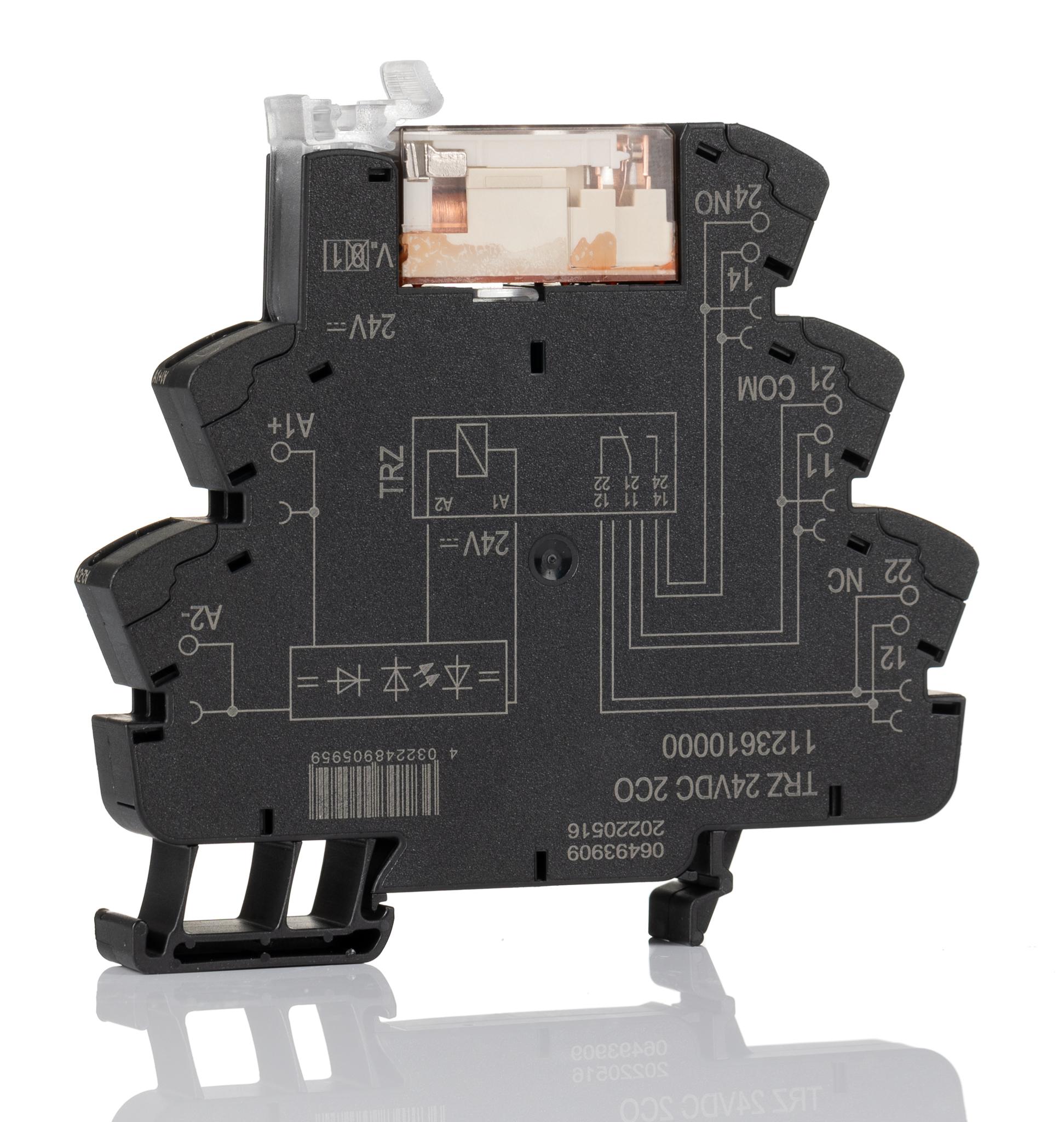

General Purpose Relay DPDT (2 Form C) 24VDC Coil DIN Rail
Coil Voltage:
24VDC
Termination Style:
Spring Terminal
Operating Temperature:
-40°C ~ 60°C
Coil Resistance:
1.2 kOhms
Coil Current:
20.0mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Must Operate Voltage:
17 VDC
Manufacturer:
Weidmuller
Relay Type:
General Purpose
Contact Form:
DPDT (2 Form C)
Operate Time:
6ms
Must Release Voltage:
3 VDC
Contact Rating (Current):
8A
Features:
Diode, Lighted Indicator, Socket Included
Mounting Type:
DIN Rail
Series:
TERMSERIES
Release Time:
18ms
Packaging:
Bulk
Contact Material:
Silver Nickel (AgNi)
