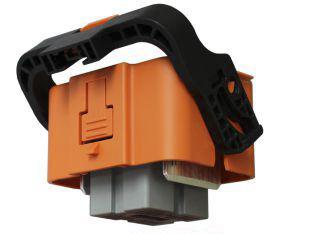

Amphenol MSD Series, Electric Vehicle Service disconnect, 550A

MSDM5502 Amphenol MSD Series, Electric Vehicle Service disconnect, 550A
Amphenol

Product Information

Current Rating:
550A
Width:
105.5mm
Operating Voltage:
690 V ac
For Use With:
HV Battery Pack
Standards Met:
LV215, USCAR2, USCAR37
Applications:
PHEV System
Termination Method:
Plug In
Maximum Operating Temperature:
+70°C
IP Rating:
IP67, IP69K
Colour:
Orange
Connector Type:
Manual Service Disconnect
Contact Gender:
Male
Depth:
62mm
Latching Type:
2 Stage Lever
Connector Gender:
Male
Orientation:
Straight
Mounting Type:
Flange Mount
Series:
MSD
Height:
103mm
Minimum Operating Temperature:
-40°C
RoHs Compliant
Checking for live stock

This is MSD Series Electric Vehicle Service disconnect 550A manufactured by Amphenol. The manufacturer part number is MSDM5502. The product has a current rating of 550a. Furthermore, the product is 105.5mm wide. It has an operating voltage about 690 v ac . The product is highly suitable for hv battery pack. The product complies with all safety standards, such as lv215, uscar2, uscar37. The product is widely employed in phev system. It allows plug in termination method. It has a maximum operating temperature of +70°c. It is IP rated with ip67, ip69k. It has a decent orange colour. manual service disconnect Connector type offer robust functionality. This male contact is widely suited for specific applications. The product comes in 62mm depth. In addition, it has a 2 stage lever type latching . The connector is of male gender . The product has a straight orientation. The product is available in flange mount configuration. The product msd, is a highly preferred choice for users. In addition, the height is 103mm. Whereas, the minimum operating temperature of the product is -40°c.

pdf icon
MSDM5502 Datasheet(Technical Reference)
