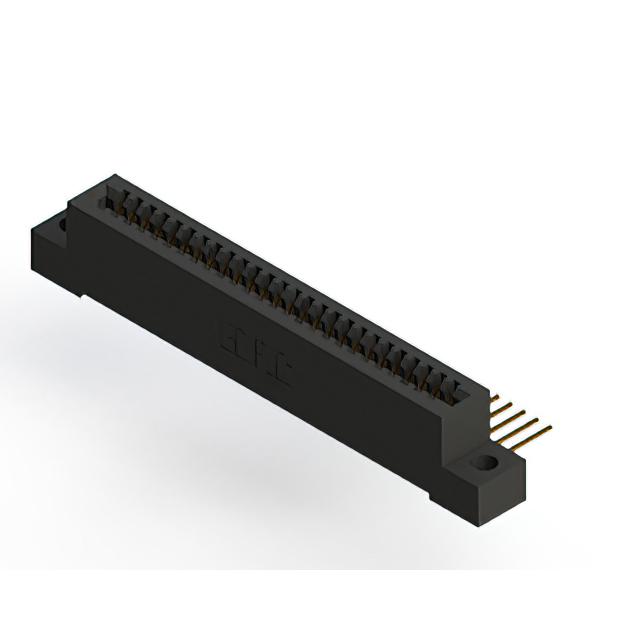

EDAC Inc. 392-026-559-104

392-026-559-104 EDAC Inc.
EDAC Inc.

Product Information

Flange Feature:
Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Material - Insulation:
Polyester Thermoplastic
Card Thickness:
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Positions/Bay/Row:
26
Contact Finish Thickness:
10.0µin (0.25µm)
Number of Positions:
26
Card Type:
Non Specified - Single Edge
REACH Status:
REACH Unaffected
edacadModel:
392-026-559-104 Models
Number of Rows:
1
edacadModelUrl:
/en/models/11045597
Package:
Box
Gender:
Female
Contact Finish:
Gold
Termination:
Solder, Wire Wrap
standardLeadTime:
18 Weeks
Termination Rows:
1
Features:
-
Mounting Type:
Through Hole, Right Angle
Color:
Black
Series:
392
Operating Temperature:
-40°C ~ 105°C
Read Out:
Single
Pitch:
0.100" (2.54mm)
Contact Type:
Cantilever
Contact Material:
Copper Alloy
Base Product Number:
392-026
ECCN:
EAR99
Checking for live stock

This is manufactured by EDAC Inc.. The manufacturer part number is 392-026-559-104. Furthermore, flush mount, top opening, unthreaded, 0.156" (3.96mm) dia is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is designed from highly reliable polyester thermoplastic insulating material. A typical product' card thickness is 0.054" ~ 0.070" (1.37mm ~ 1.78mm). It has 26 positions. It has 10.0µin (0.25µm) of contact finishing thickness. The product carries possible position value of 26. The product features a non specified - single edge card type. In addition, it is reach unaffected. It comes in 1 of rows. It is shipped in box package . In addition, female is the available "Gender" of the product. Furthermore, the product is galvanized with excellent gold contact finishing. The product features solder, wire wrap termination style. It has a long 18 weeks standard lead time. Additionally, the bespoke product is available as 1 terminal(s). The product is available in through hole, right angle configuration. It has a classic black colour. The product 392, is a highly preferred choice for users. The product has -40°c ~ 105°c operating temperature range. It features single read values. Moreover, the product is 0.100" (2.54mm). It has typical contact type of cantilever. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 392-026, a base product number of the product. The product is designated with the ear99 code number.
