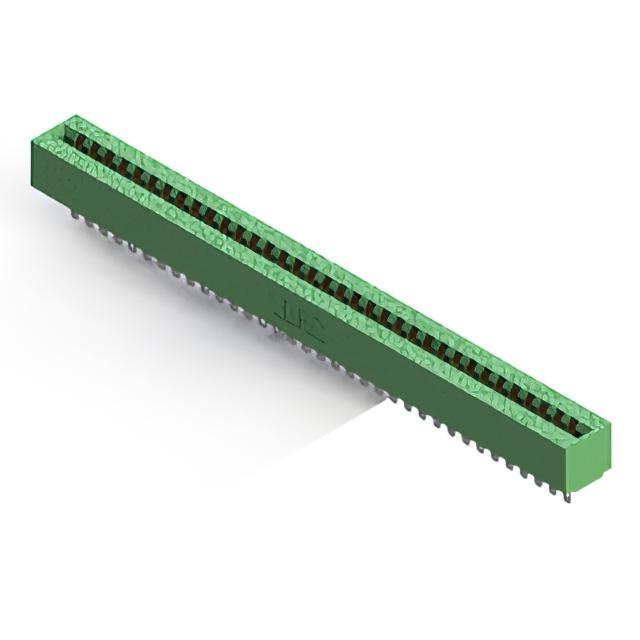

EDAC Inc. 316-035-500-101

316-035-500-101 EDAC Inc.
EDAC Inc.

Product Information

Flange Feature:
-
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Material - Insulation:
Polyester Thermoplastic
Card Thickness:
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Positions/Bay/Row:
35
Contact Finish Thickness:
10.0µin (0.25µm)
Number of Positions:
35
title:
316-035-500-101
Card Type:
Non Specified - Dual Edge
REACH Status:
REACH Unaffected
edacadModel:
316-035-500-101 Models
Number of Rows:
2
edacadModelUrl:
/en/models/10980878
Manufacturer:
EDAC Inc.
Gender:
Female
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
Not Applicable
Termination:
Solder Eyelet(s)
standardLeadTime:
18 Weeks
Termination Rows:
1
Features:
-
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
316
Operating Temperature:
-40°C ~ 105°C
Packaging:
Box
Read Out:
Dual
Pitch:
0.156" (3.96mm)
Contact Type:
Cantilever
Contact Material:
Copper Alloy
Base Product Number:
316-035
ECCN:
EAR99
Checking for live stock

This is manufactured by EDAC Inc.. The manufacturer part number is 316-035-500-101. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is designed from highly reliable polyester thermoplastic insulating material. A typical product' card thickness is 0.054" ~ 0.070" (1.37mm ~ 1.78mm). It has 35 positions. It has 10.0µin (0.25µm) of contact finishing thickness. The product carries possible position value of 35. The product features a non specified - dual edge card type. In addition, it is reach unaffected. It comes in 2 of rows. The edac inc.'s product offers user-desired applications. In addition, female is the available "Gender" of the product. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is not applicable. The product features solder eyelet(s) termination style. It has a long 18 weeks standard lead time. Additionally, the bespoke product is available as 1 terminal(s). The product is available in free hanging (in-line) configuration. It has a classic green colour. The product 316, is a highly preferred choice for users. The product has -40°c ~ 105°c operating temperature range. In addition, box is the available packaging type of the product. It features dual read values. Moreover, the product is 0.156" (3.96mm). It has typical contact type of cantilever. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 316-035, a base product number of the product. The product is designated with the ear99 code number.
