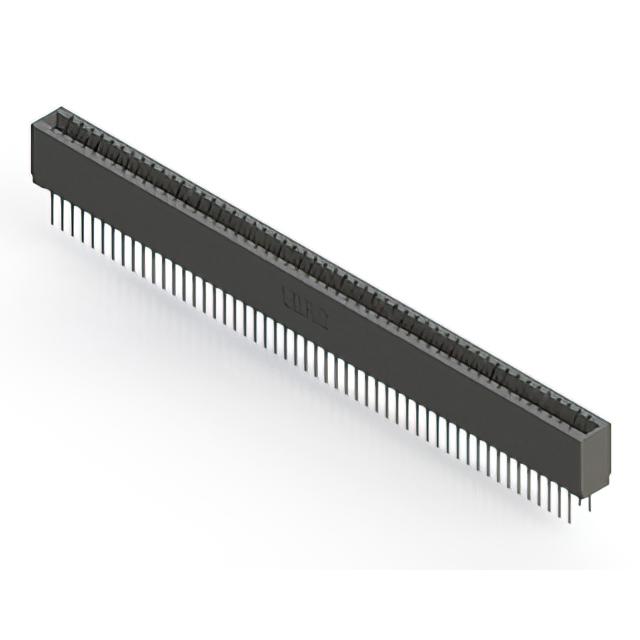

EDAC Inc. 746-104-527-201

746-104-527-201 EDAC Inc.
EDAC Inc.

Product Information

Flange Feature:
-
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Material - Insulation:
Polyester Thermoplastic
Card Thickness:
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Positions/Bay/Row:
52
Contact Finish Thickness:
30.0µin (0.76µm)
Number of Positions:
104
title:
746-104-527-201
Card Type:
Non Specified - Dual Edge
REACH Status:
REACH Unaffected
edacadModel:
746-104-527-201 Models
Number of Rows:
2
edacadModelUrl:
/en/models/10988789
Manufacturer:
EDAC Inc.
Gender:
Female
Contact Finish:
Gold
Termination:
Press-Fit
standardLeadTime:
18 Weeks
Termination Rows:
2
Features:
-
Mounting Type:
Through Hole
Color:
Black
Series:
746
Operating Temperature:
-40°C ~ 105°C
Packaging:
Box
Read Out:
Dual
Pitch:
0.125" (3.18mm)
Contact Type:
Cantilever
Contact Material:
Copper Alloy
Base Product Number:
746-104
ECCN:
EAR99
Checking for live stock

This is manufactured by EDAC Inc.. The manufacturer part number is 746-104-527-201. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is designed from highly reliable polyester thermoplastic insulating material. A typical product' card thickness is 0.054" ~ 0.070" (1.37mm ~ 1.78mm). It has 52 positions. It has 30.0µin (0.76µm) of contact finishing thickness. The product carries possible position value of 104. The product features a non specified - dual edge card type. In addition, it is reach unaffected. It comes in 2 of rows. The edac inc.'s product offers user-desired applications. In addition, female is the available "Gender" of the product. Furthermore, the product is galvanized with excellent gold contact finishing. The product features press-fit termination style. It has a long 18 weeks standard lead time. Additionally, the bespoke product is available as 2 terminal(s). The product is available in through hole configuration. It has a classic black colour. The product 746, is a highly preferred choice for users. The product has -40°c ~ 105°c operating temperature range. In addition, box is the available packaging type of the product. It features dual read values. Moreover, the product is 0.125" (3.18mm). It has typical contact type of cantilever. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 746-104, a base product number of the product. The product is designated with the ear99 code number.
