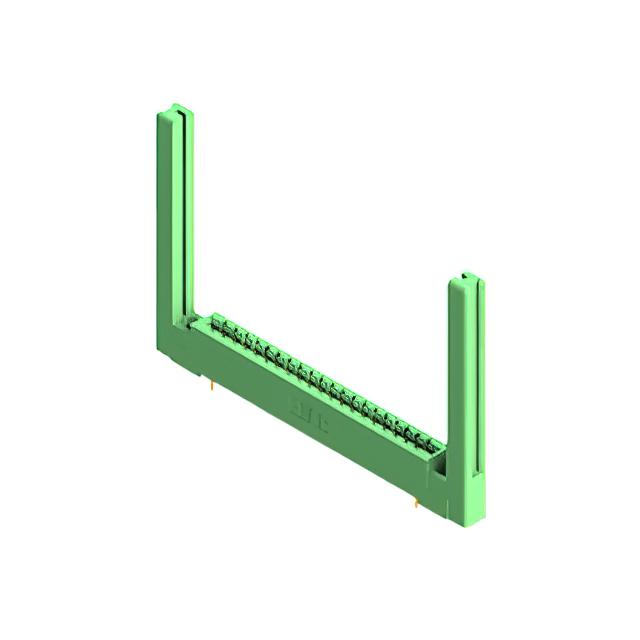

EDAC Inc. 337-040-520-258

337-040-520-258 EDAC Inc.
EDAC Inc.

Product Information

Flange Feature:
Flush Mount, Top Opening, Threaded Insert, 4-40
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Material - Insulation:
Polyester Thermoplastic
Card Thickness:
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Positions/Bay/Row:
20
Contact Finish Thickness:
10.0µin (0.25µm)
Number of Positions:
40
Card Type:
Non Specified - Dual Edge
REACH Status:
REACH Unaffected
edacadModel:
337-040-520-258 Models
Number of Rows:
2
edacadModelUrl:
/en/models/10845113
Package:
Box
Gender:
Female
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
Not Applicable
Termination:
Solder
standardLeadTime:
18 Weeks
Termination Rows:
2
Features:
Card Guides
Mounting Type:
Through Hole
Color:
Green
Series:
337
Operating Temperature:
-40°C ~ 105°C
Read Out:
Dual
Pitch:
0.156" (3.96mm)
Contact Type:
Cantilever
Contact Material:
Copper Alloy
Base Product Number:
337-040
ECCN:
EAR99
Checking for live stock

This is manufactured by EDAC Inc.. The manufacturer part number is 337-040-520-258. Furthermore, flush mount, top opening, threaded insert, 4-40 is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is designed from highly reliable polyester thermoplastic insulating material. A typical product' card thickness is 0.054" ~ 0.070" (1.37mm ~ 1.78mm). It has 20 positions. It has 10.0µin (0.25µm) of contact finishing thickness. The product carries possible position value of 40. The product features a non specified - dual edge card type. In addition, it is reach unaffected. It comes in 2 of rows. It is shipped in box package . In addition, female is the available "Gender" of the product. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is not applicable. The product features solder termination style. It has a long 18 weeks standard lead time. Additionally, the bespoke product is available as 2 terminal(s). The splendid features of the product include card guides. The product is available in through hole configuration. It has a classic green colour. The product 337, is a highly preferred choice for users. The product has -40°c ~ 105°c operating temperature range. It features dual read values. Moreover, the product is 0.156" (3.96mm). It has typical contact type of cantilever. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 337-040, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
337,387 Series Ordering Guide(Datasheets)
pdf icon
337-040-520-258 Drawing(Product Drawings)
pdf icon
EDAC REACH(Environmental Information)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 337-040-520-258 on website for other similar products.
We accept all major payment methods for all products including ET18957097. Please check your shopping cart at the time of order.
You can order EDAC Inc. brand products with 337-040-520-258 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Edgeboard Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of EDAC Inc. 337-040-520-258. You can also check on our website or by contacting our customer support team for further order details on EDAC Inc. 337-040-520-258.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18957097 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "EDAC Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET18957097.
Yes. We ship 337-040-520-258 Internationally to many countries around the world.
