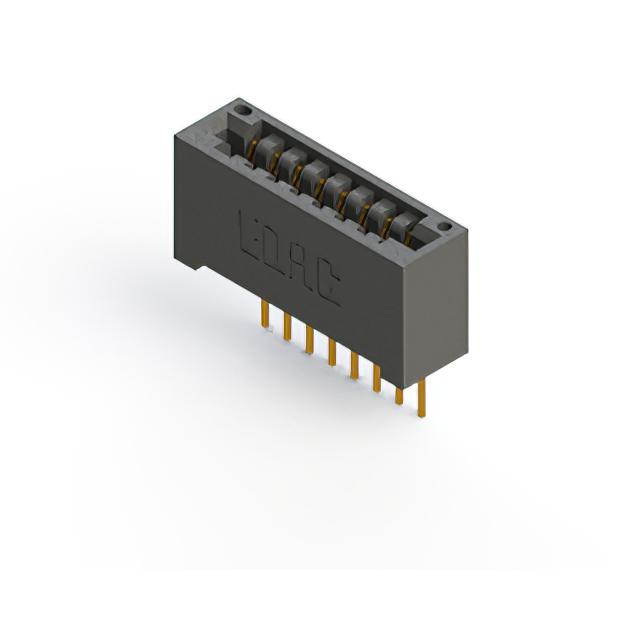

EDAC Inc. 396-008-541-101

396-008-541-101 EDAC Inc.
EDAC Inc.

Product Information

Flange Feature:
-
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Material - Insulation:
Polyester Thermoplastic
Card Thickness:
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Positions/Bay/Row:
8
Contact Finish Thickness:
10.0µin (0.25µm)
Number of Positions:
8
Card Type:
Non Specified - Single Edge
REACH Status:
REACH Unaffected
edacadModel:
396-008-541-101 Models
Number of Rows:
1
edacadModelUrl:
/en/models/11050688
Package:
Box
Gender:
Female
Contact Finish:
Gold
Termination:
Wire Wrap
standardLeadTime:
18 Weeks
Termination Rows:
1
Features:
-
Mounting Type:
Through Hole
Color:
Black
Series:
396
Operating Temperature:
-40°C ~ 105°C
Read Out:
Single
Pitch:
0.125" (3.18mm)
Contact Type:
Cantilever
Contact Material:
Copper Alloy
Base Product Number:
396-008
ECCN:
EAR99
Checking for live stock

This is manufactured by EDAC Inc.. The manufacturer part number is 396-008-541-101. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is designed from highly reliable polyester thermoplastic insulating material. A typical product' card thickness is 0.054" ~ 0.070" (1.37mm ~ 1.78mm). It has 8 positions. It has 10.0µin (0.25µm) of contact finishing thickness. The product carries possible position value of 8. The product features a non specified - single edge card type. In addition, it is reach unaffected. It comes in 1 of rows. It is shipped in box package . In addition, female is the available "Gender" of the product. Furthermore, the product is galvanized with excellent gold contact finishing. The product features wire wrap termination style. It has a long 18 weeks standard lead time. Additionally, the bespoke product is available as 1 terminal(s). The product is available in through hole configuration. It has a classic black colour. The product 396, is a highly preferred choice for users. The product has -40°c ~ 105°c operating temperature range. It features single read values. Moreover, the product is 0.125" (3.18mm). It has typical contact type of cantilever. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 396-008, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
396-008-541-101 Drawing(Product Drawings)
pdf icon
EDAC REACH(Environmental Information)
