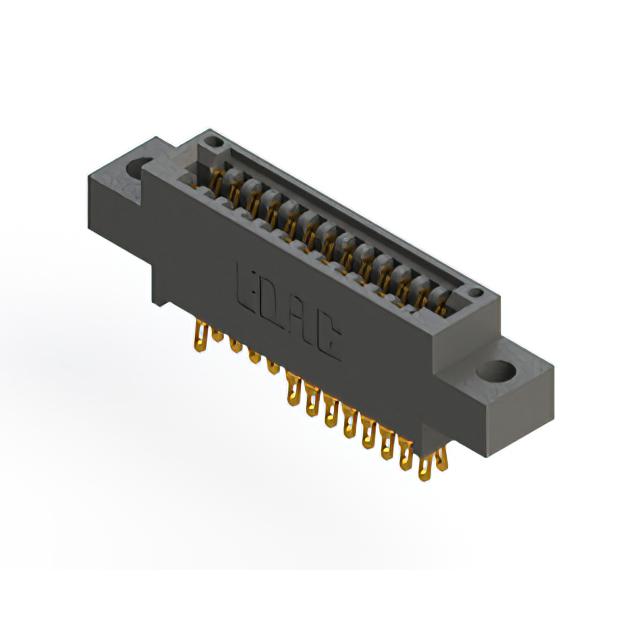

EDAC Inc. 395-026-555-804

395-026-555-804 EDAC Inc.
EDAC Inc.

Product Information

Flange Feature:
Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Material - Insulation:
Polyester Thermoplastic
Card Thickness:
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Positions/Bay/Row:
13
Contact Finish Thickness:
10.0µin (0.25µm)
Number of Positions:
26
Card Type:
Non Specified - Dual Edge
REACH Status:
REACH Unaffected
edacadModel:
395-026-555-804 Models
Number of Rows:
2
edacadModelUrl:
/en/models/10976469
Package:
Box
Gender:
Female
Contact Finish:
Gold
Termination:
Solder Eyelet(s)
standardLeadTime:
18 Weeks
Termination Rows:
2
Features:
Card Extender
Mounting Type:
Board Edge, Straddle Mount
Color:
Black
Series:
395
Operating Temperature:
-40°C ~ 105°C
Read Out:
Dual
Pitch:
0.100" (2.54mm)
Contact Type:
Cantilever
Contact Material:
Copper Alloy
Base Product Number:
395-026
ECCN:
EAR99
Checking for live stock

This is manufactured by EDAC Inc.. The manufacturer part number is 395-026-555-804. Furthermore, top mount opening, unthreaded, 0.156" (3.96mm) dia is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is designed from highly reliable polyester thermoplastic insulating material. A typical product' card thickness is 0.054" ~ 0.070" (1.37mm ~ 1.78mm). It has 13 positions. It has 10.0µin (0.25µm) of contact finishing thickness. The product carries possible position value of 26. The product features a non specified - dual edge card type. In addition, it is reach unaffected. It comes in 2 of rows. It is shipped in box package . In addition, female is the available "Gender" of the product. Furthermore, the product is galvanized with excellent gold contact finishing. The product features solder eyelet(s) termination style. It has a long 18 weeks standard lead time. Additionally, the bespoke product is available as 2 terminal(s). The splendid features of the product include card extender. The product is available in board edge, straddle mount configuration. It has a classic black colour. The product 395, is a highly preferred choice for users. The product has -40°c ~ 105°c operating temperature range. It features dual read values. Moreover, the product is 0.100" (2.54mm). It has typical contact type of cantilever. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 395-026, a base product number of the product. The product is designated with the ear99 code number.
