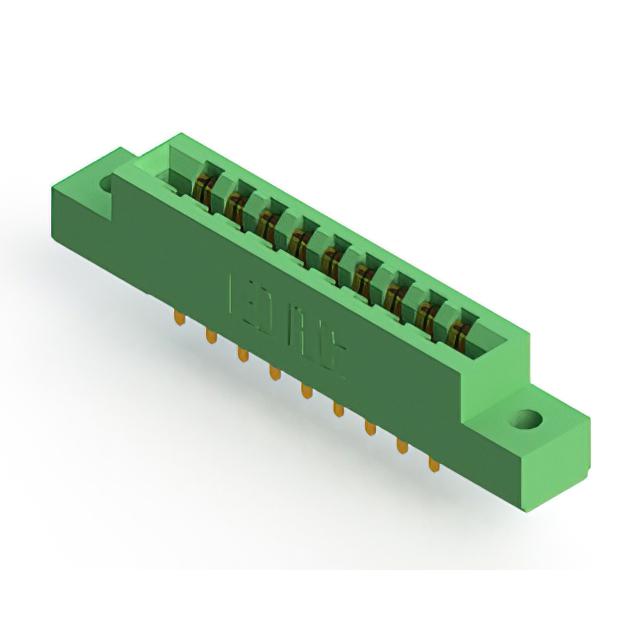

EDAC Inc. 305-018-521-502

305-018-521-502 EDAC Inc.
EDAC Inc.

Product Information

Flange Feature:
Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Card Thickness:
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Positions/Bay/Row:
9
Contact Finish Thickness:
10.0µin (0.25µm)
Number of Positions:
18
Card Type:
Non Specified - Dual Edge
REACH Status:
REACH Unaffected
edacadModel:
305-018-521-502 Models
Number of Rows:
2
edacadModelUrl:
/en/models/10934463
Manufacturer:
EDAC Inc.
Gender:
Female
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
Not Applicable
Termination:
Solder
standardLeadTime:
18 Weeks
Features:
-
Mounting Type:
Panel Mount, Through Hole
Color:
Green
Series:
305
Operating Temperature:
-40°C ~ 105°C
Packaging:
Box
Read Out:
Dual
Pitch:
0.156" (3.96mm)
Contact Type:
Semi Bellows
Contact Material:
Copper Alloy
Base Product Number:
305-018
ECCN:
EAR99
Checking for live stock

This is manufactured by EDAC Inc.. The manufacturer part number is 305-018-521-502. Furthermore, flush mount, top opening, unthreaded, 0.128" (3.25mm) dia is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. A typical product' card thickness is 0.054" ~ 0.070" (1.37mm ~ 1.78mm). It has 9 positions. It has 10.0µin (0.25µm) of contact finishing thickness. The product carries possible position value of 18. The product features a non specified - dual edge card type. In addition, it is reach unaffected. It comes in 2 of rows. The edac inc.'s product offers user-desired applications. In addition, female is the available "Gender" of the product. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is not applicable. The product features solder termination style. It has a long 18 weeks standard lead time. The product is available in panel mount, through hole configuration. It has a classic green colour. The product 305, is a highly preferred choice for users. The product has -40°c ~ 105°c operating temperature range. In addition, box is the available packaging type of the product. It features dual read values. Moreover, the product is 0.156" (3.96mm). It has typical contact type of semi bellows. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 305-018, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
305,315,355 Series Ordering Guide(Datasheets)
pdf icon
305-018-521-502 Drawing(Product Drawings)
pdf icon
EDAC REACH(Environmental Information)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 305-018-521-502 on website for other similar products.
We accept all major payment methods for all products including ET18816510. Please check your shopping cart at the time of order.
You can order EDAC Inc. brand products with 305-018-521-502 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Edgeboard Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of EDAC Inc. 305-018-521-502. You can also check on our website or by contacting our customer support team for further order details on EDAC Inc. 305-018-521-502.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18816510 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "EDAC Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET18816510.
Yes. We ship 305-018-521-502 Internationally to many countries around the world.
