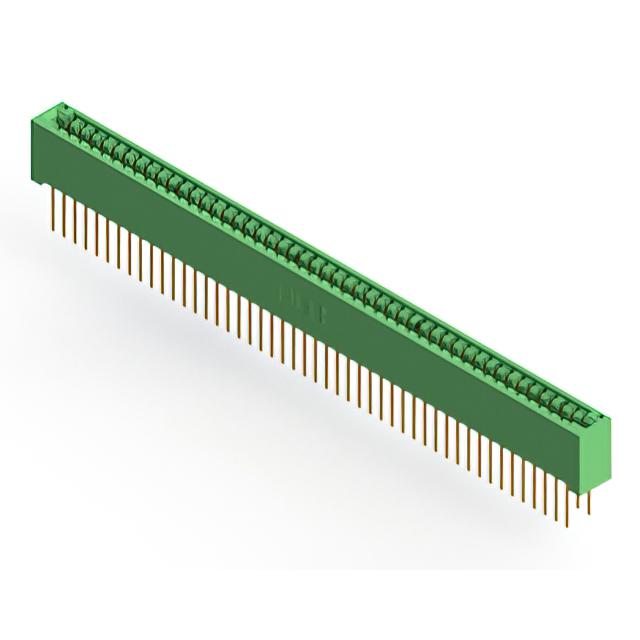

EDAC Inc. 846-096-522-201

846-096-522-201 EDAC Inc.
EDAC Inc.

Product Information

Flange Feature:
-
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Material - Insulation:
Diallyl Phthalate (DAP)
Card Thickness:
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Positions/Bay/Row:
48
Contact Finish Thickness:
10.0µin (0.25µm)
Number of Positions:
96
Card Type:
Non Specified - Dual Edge
REACH Status:
REACH Unaffected
edacadModel:
846-096-522-201 Models
Number of Rows:
2
edacadModelUrl:
/en/models/11150480
Package:
Box
Gender:
Female
Contact Finish:
Gold
Termination:
Solder
standardLeadTime:
18 Weeks
Termination Rows:
2
Features:
-
Mounting Type:
Through Hole
Color:
Green
Series:
846
Operating Temperature:
-40°C ~ 125°C
Read Out:
Dual
Pitch:
0.125" (3.18mm)
Contact Type:
Cantilever
Contact Material:
Copper Alloy
Base Product Number:
846-096
ECCN:
EAR99
Checking for live stock

This is manufactured by EDAC Inc.. The manufacturer part number is 846-096-522-201. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is designed from highly reliable diallyl phthalate (dap) insulating material. A typical product' card thickness is 0.054" ~ 0.070" (1.37mm ~ 1.78mm). It has 48 positions. It has 10.0µin (0.25µm) of contact finishing thickness. The product carries possible position value of 96. The product features a non specified - dual edge card type. In addition, it is reach unaffected. It comes in 2 of rows. It is shipped in box package . In addition, female is the available "Gender" of the product. Furthermore, the product is galvanized with excellent gold contact finishing. The product features solder termination style. It has a long 18 weeks standard lead time. Additionally, the bespoke product is available as 2 terminal(s). The product is available in through hole configuration. It has a classic green colour. The product 846, is a highly preferred choice for users. The product has -40°c ~ 125°c operating temperature range. It features dual read values. Moreover, the product is 0.125" (3.18mm). It has typical contact type of cantilever. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 846-096, a base product number of the product. The product is designated with the ear99 code number.
