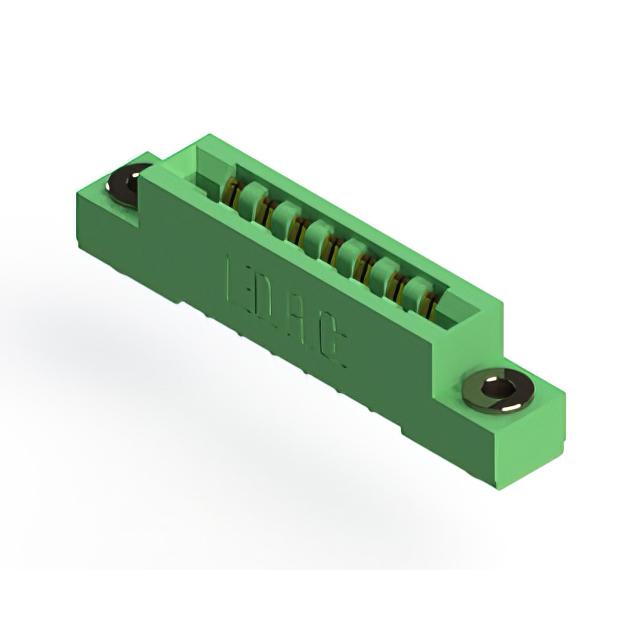

EDAC Inc. 807-007-531-103

807-007-531-103 EDAC Inc.
EDAC Inc.

Product Information

Flange Feature:
Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Material - Insulation:
Diallyl Phthalate (DAP)
Card Thickness:
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Positions/Bay/Row:
7
Contact Finish Thickness:
10.0µin (0.25µm)
Number of Positions:
7
Card Type:
Non Specified - Single Edge
REACH Status:
REACH Unaffected
edacadModel:
807-007-531-103 Models
Number of Rows:
1
edacadModelUrl:
/en/models/11058506
Package:
Box
Gender:
Female
Contact Finish:
Gold
Termination:
Solder
standardLeadTime:
18 Weeks
Termination Rows:
1
Features:
-
Mounting Type:
Through Hole
Color:
Green
Series:
807
Operating Temperature:
-40°C ~ 125°C
Read Out:
Single
Pitch:
0.156" (3.96mm)
Contact Type:
Semi Bellows
Contact Material:
Copper Alloy
Base Product Number:
807-007
ECCN:
EAR99
Checking for live stock

This is manufactured by EDAC Inc.. The manufacturer part number is 807-007-531-103. Furthermore, flush mount, floating bobbin, 0.116" (2.95mm) dia is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is designed from highly reliable diallyl phthalate (dap) insulating material. A typical product' card thickness is 0.054" ~ 0.070" (1.37mm ~ 1.78mm). It has 7 positions. It has 10.0µin (0.25µm) of contact finishing thickness. The product carries possible position value of 7. The product features a non specified - single edge card type. In addition, it is reach unaffected. It comes in 1 of rows. It is shipped in box package . In addition, female is the available "Gender" of the product. Furthermore, the product is galvanized with excellent gold contact finishing. The product features solder termination style. It has a long 18 weeks standard lead time. Additionally, the bespoke product is available as 1 terminal(s). The product is available in through hole configuration. It has a classic green colour. The product 807, is a highly preferred choice for users. The product has -40°c ~ 125°c operating temperature range. It features single read values. Moreover, the product is 0.156" (3.96mm). It has typical contact type of semi bellows. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 807-007, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
807,857 Series Ordering Guide(Datasheets)
pdf icon
807-007-531-103 Drawing(Product Drawings)
pdf icon
EDAC REACH(Environmental Information)
