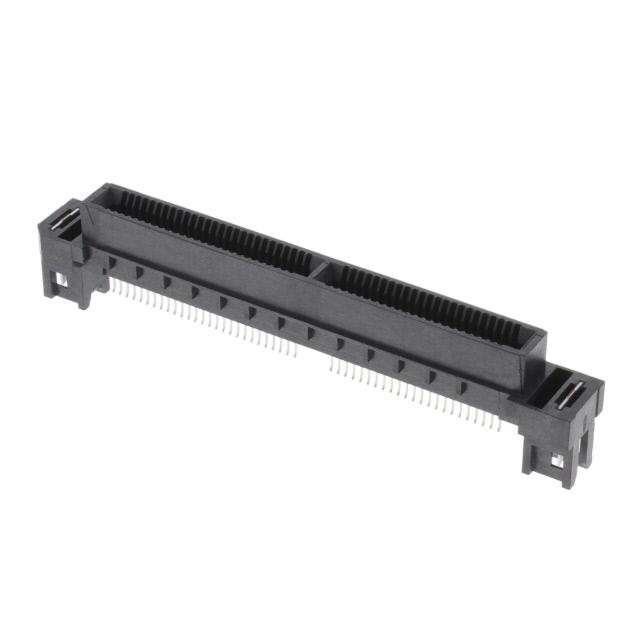

Samtec Inc. HSEC8-150-01-S-D-EM2

HSEC8-150-01-S-D-EM2 Samtec Inc.
Samtec Inc.

Product Information

Flange Feature:
-
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Material - Insulation:
Liquid Crystal Polymer (LCP)
Card Thickness:
0.062" (1.57mm)
Number of Positions/Bay/Row:
50
Contact Finish Thickness:
30.0µin (0.76µm)
Number of Positions:
100
Card Type:
Non Specified - Dual Edge
REACH Status:
REACH Unaffected
edacadModel:
HSEC8-150-01-S-D-EM2 Models
Number of Rows:
2
edacadModelUrl:
/en/models/6695293
Package:
Tube
Gender:
Female
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
6 Weeks
Features:
-
Mounting Type:
Board Edge, Straddle Mount
Color:
Black
Series:
Edge Rate™ HSEC8
Operating Temperature:
-55°C ~ 125°C
Read Out:
Dual
Pitch:
0.031" (0.80mm)
Contact Type:
Cantilever
Contact Material:
Beryllium Copper
Base Product Number:
HSEC8-150
ECCN:
EAR99
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is HSEC8-150-01-S-D-EM2. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is designed from highly reliable liquid crystal polymer (lcp) insulating material. A typical product' card thickness is 0.062" (1.57mm). It has 50 positions. It has 30.0µin (0.76µm) of contact finishing thickness. The product carries possible position value of 100. The product features a non specified - dual edge card type. In addition, it is reach unaffected. It comes in 2 of rows. It is shipped in tube package . In addition, female is the available "Gender" of the product. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 6 weeks standard lead time. The product is available in board edge, straddle mount configuration. It has a classic black colour. The product edge rate™ hsec8, is a highly preferred choice for users. The product has -55°c ~ 125°c operating temperature range. It features dual read values. Moreover, the product is 0.031" (0.80mm). It has typical contact type of cantilever. The product is made from sturdy beryllium copper materials. Moreover, it corresponds to hsec8-150, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
HSEC8 MFG Testing(Reliability Documents)
pdf icon
HSEC8 Design Qualification Test Report(Reliability Documents)
pdf icon
HSEC8-EM Series Catalog Page(Datasheets)
pdf icon
HSEC8-EM Edgemount Footprint(Design Resources)
pdf icon
HSEC8 Design Qualification Report(Other Related Documents)
pdf icon
HSEC8-EM Series Print(Product Drawings)
