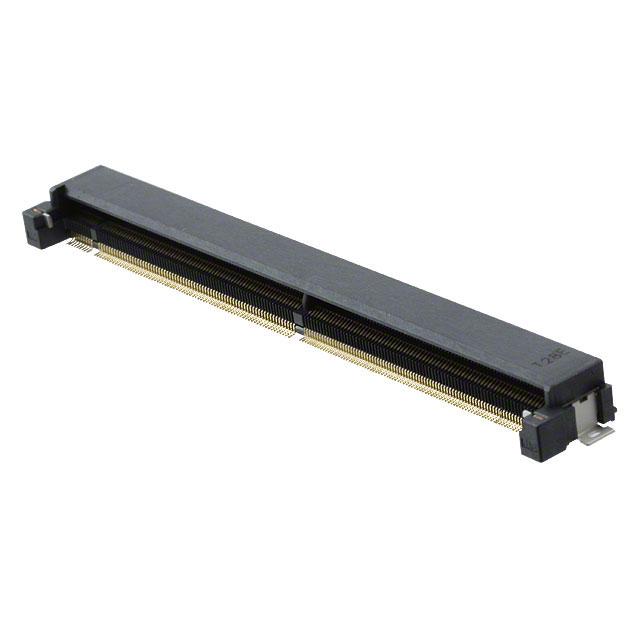

JAE Electronics MM70-314B2-1-R500

MM70-314B2-1-R500 JAE Electronics
JAE Electronics

Product Information

Flange Feature:
-
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Material - Insulation:
Liquid Crystal Polymer (LCP), Glass Filled
Card Thickness:
0.047" (1.20mm)
Number of Positions/Bay/Row:
-
Contact Finish Thickness:
11.8µin (0.30µm)
Number of Positions:
314
Card Type:
MXM 3.0
Number of Rows:
2
Manufacturer:
JAE Electronics
Gender:
Female
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Features:
-
Mounting Type:
Surface Mount, Right Angle
Color:
Black
Series:
MM70
Operating Temperature:
-40°C ~ 85°C
Packaging:
Tape & Reel (TR)
Read Out:
Dual
Pitch:
0.020" (0.50mm)
Contact Type:
-
Contact Material:
Copper Alloy
ECCN:
EAR99
Checking for live stock

This is manufactured by JAE Electronics. The manufacturer part number is MM70-314B2-1-R500. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. It is designed from highly reliable liquid crystal polymer (lcp), glass filled insulating material. A typical product' card thickness is 0.047" (1.20mm). It has 11.8µin (0.30µm) of contact finishing thickness. The product carries possible position value of 314. The product features a mxm 3.0 card type. It comes in 2 of rows. The jae electronics's product offers user-desired applications. In addition, female is the available "Gender" of the product. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. The product is available in surface mount, right angle configuration. It has a classic black colour. The product mm70, is a highly preferred choice for users. The product has -40°c ~ 85°c operating temperature range. In addition, tape & reel (tr) is the available packaging type of the product. It features dual read values. Moreover, the product is 0.020" (0.50mm). The product is made from sturdy copper alloy materials. The product is designated with the ear99 code number.

pdf icon
MM70 - replacement release 06/OCT/2020(PCN Other)
pdf icon
MM70-314 series End of Life 21/JUL/2020(PCN Obsolescence/ EOL)
pdf icon
MM70-314B2-x Drawing(Product Drawings)
