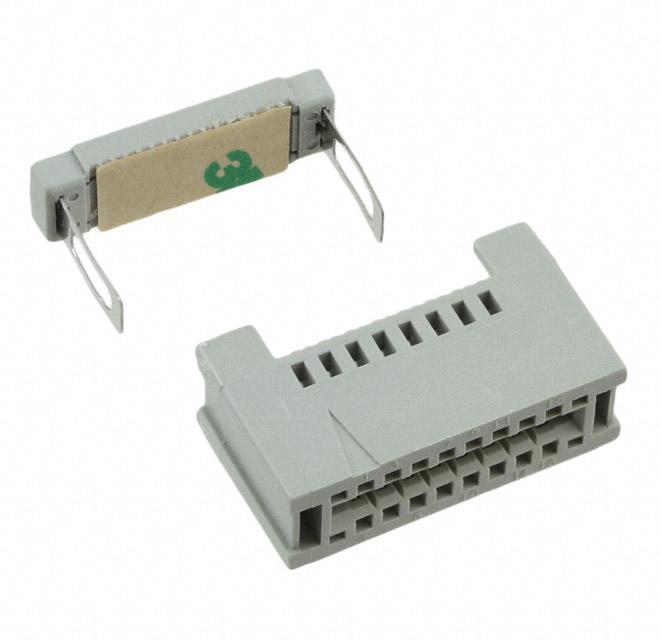

3M 3368-0001

  • Enrgtech Part No: ET11199297
  • |
  • Manufacturer Part No:

    3368-0001

  • |
  • Manufacturer: 3M
3368-0001 3M
3368-0001
3368-0001
3M

Product Information

Series:
3000
Current Rating:
1A
Minimum Operating Temperature:
-55°C
Mounting Type:
Flange Mount
Gender:
Female
Body Orientation:
Right Angle
Termination Method:
IDC
Length:
32mm
Housing Material:
PBT
Width:
18mm
Depth:
11.2mm
Number of Rows:
2
Contact Plating:
Gold
Pitch:
2.54mm
Number of Contacts:
16
Keying Way:
Yes
Maximum Operating Temperature:
+105°C
Contact Material:
Copper Alloy
Flange Feature:
-
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Material - Insulation:
Polybutylene Terephthalate (PBT), Glass Filled
Card Thickness:
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Positions/Bay/Row:
8
Contact Finish Thickness:
30.0µin (0.76µm)
Number of Positions:
16
Card Type:
Non Specified - Dual Edge
Number of Rows:
2
Package:
Bulk
Gender:
Female
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
IDC
Features:
-
Mounting Type:
Free Hanging (In-Line)
Color:
Gray
Series:
3000
Operating Temperature:
-55°C ~ 105°C
Read Out:
Dual
Pitch:
0.100" (2.54mm)
Contact Type:
-
Contact Material:
Copper Alloy
Base Product Number:
3368
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by 3M. The manufacturer part number is 3368-0001. The product 3000, is a highly preferred choice for users. The product has a current rating of 1a. Whereas, the minimum operating temperature of the product is -55°c. The product is available in flange mount configuration. In addition, female is the available "Gender" of the product. It has right angle body orientation. It allows idc termination method. Its accurate length is 32mm. The product also features robust pbt housing material. Furthermore, the product is 18mm wide. The product comes in 11.2mm depth. It comes in 2 of rows. The high-quality gold is used as contact plating material. Moreover, the product is 2.54mm. The product contains 16 contacts. It has a keying way characteristic yes . It has a maximum operating temperature of +105°c. The product is made from sturdy copper alloy materials. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. It is designed from highly reliable polybutylene terephthalate (pbt), glass filled insulating material. A typical product' card thickness is 0.054" ~ 0.070" (1.37mm ~ 1.78mm). It has 8 positions. It has 30.0µin (0.76µm) of contact finishing thickness. The product carries possible position value of 16. The product features a non specified - dual edge card type. It is shipped in bulk package . Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features idc termination style. The product is available in free hanging (in-line) configuration. It has a classic gray colour. The product has -55°c ~ 105°c operating temperature range. It features dual read values. Moreover, the product is 0.100" (2.54mm). Moreover, it corresponds to 3368, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
Multiple Devices 12/Dec/2019(PCN Obsolescence/ EOL)
pdf icon
3000 Series Pak 100 Card-Edge(Datasheets)
pdf icon
Interconnect Catalog(Datasheets)
