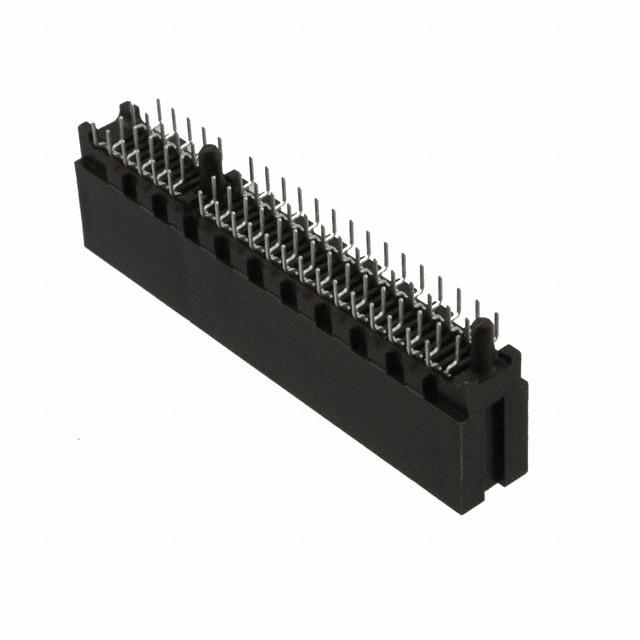

TE Connectivity AMP Connectors 5650090-3

5650090-3 TE Connectivity AMP Connectors
5650090-3
TE Connectivity AMP Connectors

Product Information

Flange Feature:
-
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Material - Insulation:
Thermoplastic
Card Thickness:
0.062" (1.57mm)
Number of Positions/Bay/Row:
11; 29
Contact Finish Thickness:
30.0µin (0.76µm)
Number of Positions:
80
Card Type:
Non Specified - Dual Edge
REACH Status:
Vendor Undefined
edacadModel:
5650090-3 Models
Number of Rows:
2
edacadModelUrl:
/en/models/2259414
Package:
Bulk
Gender:
Female
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder, Staggered
standardLeadTime:
14 Weeks
Features:
Board Guide
Mounting Type:
Through Hole
Color:
Brown
Series:
Standard Edge .050
Operating Temperature:
-55°C ~ 85°C
Read Out:
Dual
Pitch:
0.050" (1.27mm)
Contact Type:
-
Contact Material:
Phosphor Bronze
Base Product Number:
5650090
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 5650090-3. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is designed from highly reliable thermoplastic insulating material. A typical product' card thickness is 0.062" (1.57mm). It has 11; 29 positions. It has 30.0µin (0.76µm) of contact finishing thickness. The product carries possible position value of 80. The product features a non specified - dual edge card type. In addition, it is vendor undefined. It comes in 2 of rows. It is shipped in bulk package . In addition, female is the available "Gender" of the product. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder, staggered termination style. It has a long 14 weeks standard lead time. The splendid features of the product include board guide. The product is available in through hole configuration. It has a classic brown colour. The product standard edge .050, is a highly preferred choice for users. The product has -55°c ~ 85°c operating temperature range. It features dual read values. Moreover, the product is 0.050" (1.27mm). The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 5650090, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Multiple Drawings Drawing Correction 15/May/2018(PCN Design/Specification)
