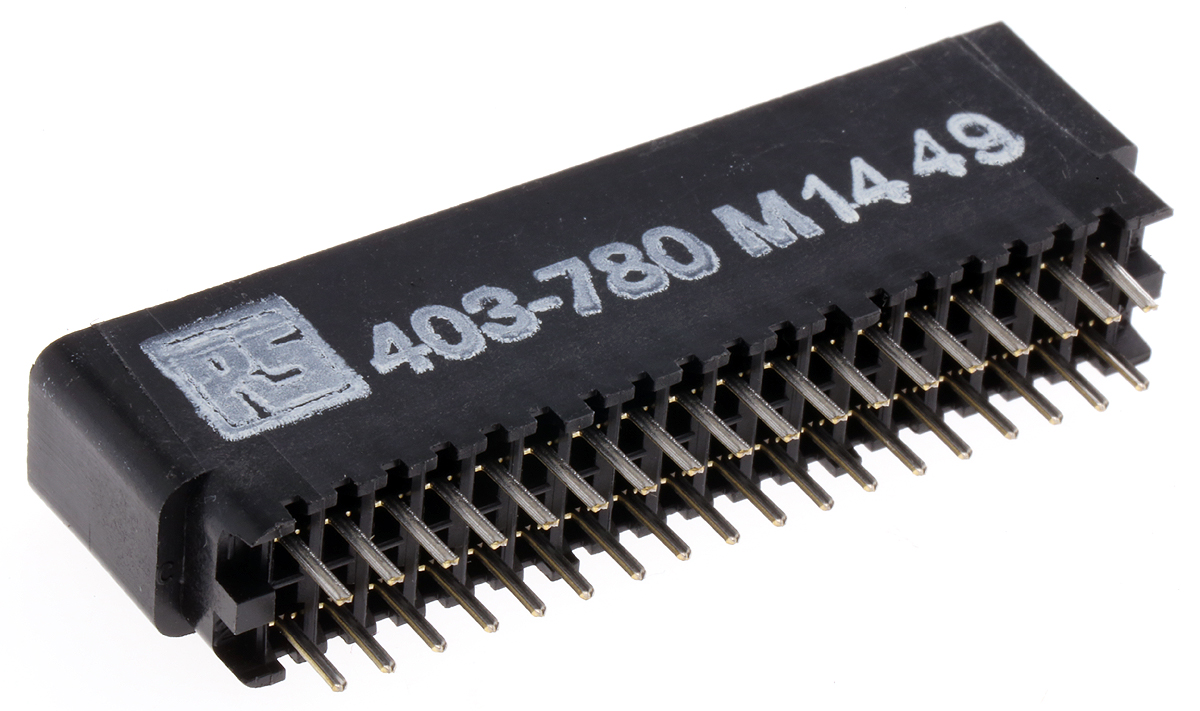

Cinch Edge Connector, PCB Mount, 18-Contacts, 2.54mm Pitch, 2-Row, Solder Termination

BA000010000AE00 Cinch Edge Connector, PCB Mount, 18-Contacts, 2.54mm Pitch, 2-Row, Solder Termination
Cinch

Product Information

Current Rating:
3A
Minimum Operating Temperature:
-55°C
Mounting Type:
PCB Mount
Maximum Operating Temperature:
+105°C
Body Orientation:
Straight
Termination Method:
Solder
Length:
52.26mm
Housing Material:
Glass Fibre Reinforced PET
Width:
9.3mm
Depth:
15.1mm
Number of Rows:
2
Contact Plating:
Gold over Nickel
Pitch:
2.54mm
Number of Contacts:
18
Keying Way:
Yes
Contact Material:
Brass
RoHs Compliant
Checking for live stock

This is Edge Connector PCB Mount 18-Contacts 2.54mm Pitch 2-Row Solder Termination manufactured by Cinch. The manufacturer part number is BA000010000AE00. The product has a current rating of 3a. Whereas, the minimum operating temperature of the product is -55°c. The product is available in pcb mount configuration. It has a maximum operating temperature of +105°c. It has straight body orientation. It allows solder termination method. Its accurate length is 52.26mm. The product also features robust glass fibre reinforced pet housing material. Furthermore, the product is 9.3mm wide. The product comes in 15.1mm depth. It comes in 2 of rows. The high-quality gold over nickel is used as contact plating material. Moreover, the product is 2.54mm. The product contains 18 contacts. It has a keying way characteristic yes . The product is made from sturdy brass materials.

pdf icon
Datasheet(Technical Reference)
pdf icon
AT/XT PC Edge Connectors Data Sheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship BA000010000AE00 Internationally to many countries around the world.
Yes. You can also search BA000010000AE00 on website for other similar products.
We accept all major payment methods for all products including ET28388832. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET28388832 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Cinch" products on our website by using Enrgtech's Unique Manufacturing Part Number ET28388832.
You can order Cinch brand products with BA000010000AE00 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Edge Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Cinch Edge Connector, PCB Mount, 18-Contacts, 2.54mm Pitch, 2-Row, Solder Termination. You can also check on our website or by contacting our customer support team for further order details on Cinch Edge Connector, PCB Mount, 18-Contacts, 2.54mm Pitch, 2-Row, Solder Termination.
