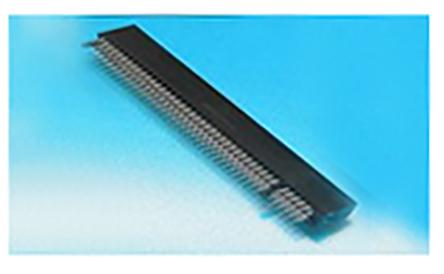

TE Connectivity Standard Edge II Series, Female PCB Edge Connector, Through Hole Mount, 31 (Dual) Way, 2 Row

7-5530843-0 TE Connectivity Standard Edge II Series, Female PCB Edge Connector, Through Hole Mount, 31 (Dual) Way, 2 Row
TE Connectivity

Product Information

Series:
Standard Edge II
Current Rating:
3A
Minimum Operating Temperature:
-55°C
Mounting Type:
Through Hole
Voltage Rating:
400 V ac
Number of Contacts:
31 (Dual)
Gender:
Female
Body Orientation:
Straight
Termination Method:
Solder
Length:
85.34mm
Housing Material:
Glass Filled Polyester
Width:
9.35mm
Depth:
15.49mm
Number of Rows:
2
Contact Plating:
Gold over Nickel
Pitch:
2.54mm
Contact Material:
Phosphor Bronze
Maximum Operating Temperature:
+85°C
Series Number:
5530843
RoHs Compliant
Checking for live stock

This is Standard Edge II Series Female PCB Edge Connector Through Hole Mount 31 (Dual) Way 2 Row manufactured by TE Connectivity. The manufacturer part number is 7-5530843-0. The product standard edge ii, is a highly preferred choice for users. The product has a current rating of 3a. Whereas, the minimum operating temperature of the product is -55°c. The product is available in through hole configuration. Moreover, the product has a nominal 400 v ac voltage rating. The product contains 31 (dual) contacts. In addition, female is the available "Gender" of the product. It has straight body orientation. It allows solder termination method. Its accurate length is 85.34mm. The product also features robust glass filled polyester housing material. Furthermore, the product is 9.35mm wide. The product comes in 15.49mm depth. It comes in 2 of rows. The high-quality gold over nickel is used as contact plating material. Moreover, the product is 2.54mm. The product is made from sturdy phosphor bronze materials. It has a maximum operating temperature of +85°c. It carries [Serial Number] serial number.
