Number of Contacts:
14
Current Rating:
2 (Load) A, 3 A
Minimum Operating Temperature:
-65°C
Mounting Type:
Surface Mount
Gender:
Female
Body Orientation:
Right Angle
Termination Method:
Solder
Length:
35.48mm
Housing Material:
Glass Filled Thermoplastic
Width:
8.4mm
Depth:
5.85mm
Number of Rows:
2
Contact Plating:
Gold over Nickel
Pitch:
2.54mm
Contact Material:
Phosphor Bronze
Maximum Operating Temperature:
+125°C
Series Number:
71609
Manufacturer Standard Lead Time:
7 Weeks
Style:
Board to Board
Detailed Description:

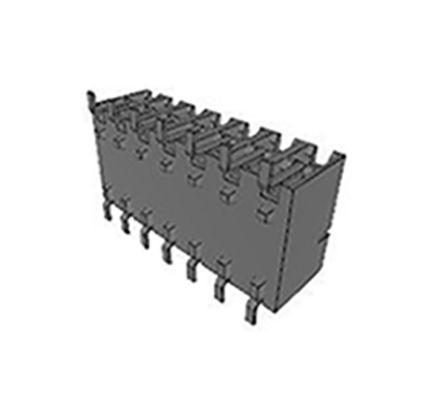

14 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold
Contact Finish Thickness - Post:
78.7µin (2.00µm)
Number of Positions:
14
Contact Finish - Mating:
Gold
Insulation Height:
0.230" (5.85mm)
Applications:
Automotive, General Purpose, Industrial, Telecommunications
Number of Rows:
2
Standard Package:
396
Contact Shape:
Square
Manufacturer:
Amphenol FCI
Insulation Color:
Gray
Material Flammability Rating:
UL94 V-0
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Fastening Type:
Push-Pull
Termination:
Solder
Pitch - Mating:
0.100" (2.54mm)
Mounting Type:
Surface Mount, Right Angle
Series:
Dubox™
Packaging:
Tube
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Contact Type:
Female Socket
Contact Finish - Post:
Tin
Insulation Material:
Thermoplastic, Glass Filled
Contact Material:
Phosphor Bronze
