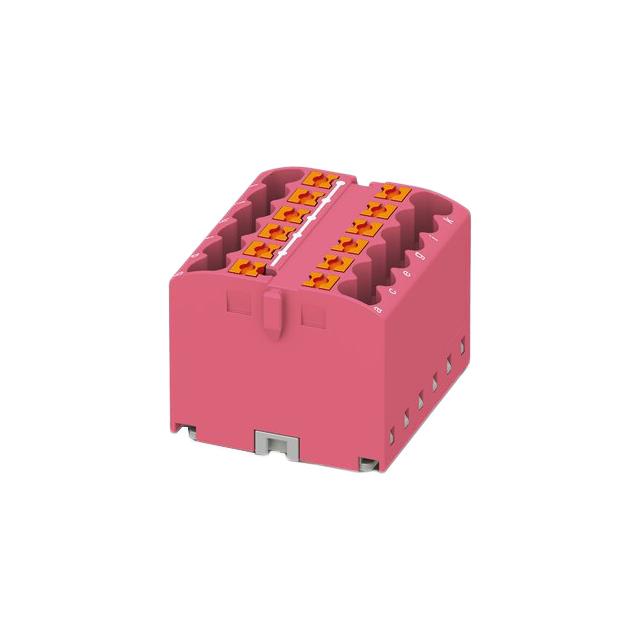

Distribution block

3273303 Distribution block
3273303
Phoenix Contact

Product Information

Current Rating:
24A
IP Rating:
IP20
Colour:
Pink
Voltage Rating:
450 V
Housing Material:
Polyamide
Number of Ways:
12
Termination Method:
Push In
Cable CSA:
4mm²
Wire Size:
12 AWG
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Operating Temperature:
-60°C ~ 105°C
Type:
Middle
Number of Positions:
12
Wire Gauge or Range - mm²:
0.14-4mm²
Height (Max):
0.854" (21.70mm)
REACH Status:
REACH Unaffected
Housing Color:
Pink
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Stripping Length:
8mm ~ 10mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
24 A
Number of Levels:
1
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
600 V
standardLeadTime:
6 Weeks
Terminal - Width:
31.5mm
Voltage - IEC:
450 V
Features:
Block of 6
Mounting Type:
Direct Mount
Series:
CLIPLINE PTFIX
Length:
1.126" (28.60mm)
Current - UL:
5 A
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Distribution block manufactured by Phoenix Contact. The manufacturer part number is 3273303. The product has a current rating of 24a. It is IP rated with ip20. It has a decent pink colour. Moreover, the product has a nominal 450 v voltage rating. The product also features robust polyamide housing material. It comprises 12 ways. It allows push in termination method. The cross section area of the cable includes 4mm². Concerning wire's size, it is 12 awg. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has push in, spring terminal style. It is designed from highly reliable polyamide (pa), nylon insulating material. The product has -60°c ~ 105°c operating temperature range. It comes in middle configuration. The product carries possible position value of 12. A 0.14-4mm² of wire gauge. Additionally, the 0.854" (21.70mm) is the maximum height of the product. In addition, it is reach unaffected. It has an integral pink housing colour. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . It has a stripping length of 8mm ~ 10mm. Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 24 a. The product carries 1 levels. While 12-26 awg is its range or wire gauge. While 600 v is the typical voltage of the product. It has a long 6 weeks standard lead time. The built-in terminal is 31.5mm wide. The nominal voltage of the product is 450 v. The splendid features of the product include block of 6. The product is available in direct mount configuration. The product clipline ptfix, is a highly preferred choice for users. Its accurate length is 1.126" (28.60mm). The typical current includes 5 a. The product is designated with the ear99 code number.

pdf icon
Datasheet - 3273303(Technical Reference)
