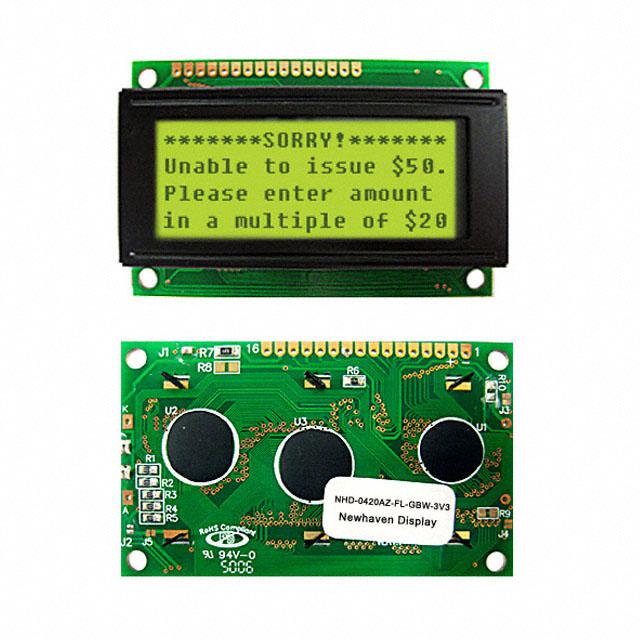

Newhaven Display Intl NHD-0420AZ-FL-GBW-3V

NHD-0420AZ-FL-GBW-3V Newhaven Display Intl
Newhaven Display Intl

Product Information

Character Size:
4.03mm H x 2.30mm W
HTSUS:
8531.20.0020
RoHS Status:
ROHS3 Compliant
Character Format:
5 x 8 Dots
Display Format:
20 x 4
Operating Temperature:
-20°C ~ 70°C
REACH Status:
REACH Unaffected
Interface:
Parallel
Package:
Box
Viewing Area:
60.00mm L x 22.00mm W
Moisture Sensitivity Level (MSL):
Not Applicable
Text Color:
Gray
Background Color:
Green
Display Type:
STN - Super-Twisted Nematic
Series:
-
Number of Characters:
80
Outline L x W x H:
77.00mm x 47.00mm x 14.50mm
Voltage - Supply:
2.7V ~ 3.3V
Base Product Number:
NHD-0420
Display Mode:
Transflective
Dot Size:
0.42mm W x 0.46mm H
Backlight:
LED - Yellow/Green
ECCN:
EAR99
Checking for live stock

This is manufactured by Newhaven Display Intl. The manufacturer part number is NHD-0420AZ-FL-GBW-3V. Its character size is 4.03mm h x 2.30mm w. It is assigned with possible HTSUS value of 8531.20.0020. The product is rohs3 compliant. It has a given 5 x 8 dots character format. It has a typical 20 x 4 display format. The product has -20°c ~ 70°c operating temperature range. In addition, it is reach unaffected. A bespoke product is parallel interface. It is shipped in box package . Provides a 60.00mm l x 22.00mm w viewing area. Its typical moisture sensitivity level is not applicable. The text is provided in gray colour. The product has a classic green background colour. It features a remarkable stn - super-twisted nematic display. Consists of 80 characters. Outline Specifications include in (L x W x H) - 77.00mm x 47.00mm x 14.50mm. It has optimum voltage supply of 2.7v ~ 3.3v. Moreover, it corresponds to nhd-0420, a base product number of the product. Typically has a transflective display mode. Has a dot size of 0.42mm w x 0.46mm h. Backlight Options - led - yellow/green. The product is designated with the ear99 code number.

pdf icon
NHD-0420AZ-FL-GBW-3V User Guide(Datasheets)
pdf icon
LCD Solvent Precautions(Other Related Documents)
pdf icon
LCD Safe Handling Procedure(Other Related Documents)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search NHD-0420AZ-FL-GBW-3V on website for other similar products.
We accept all major payment methods for all products including ET15768960. Please check your shopping cart at the time of order.
You can order Newhaven Display Intl brand products with NHD-0420AZ-FL-GBW-3V directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Display Modules - LCD, OLED Character and Numeric category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Newhaven Display Intl NHD-0420AZ-FL-GBW-3V. You can also check on our website or by contacting our customer support team for further order details on Newhaven Display Intl NHD-0420AZ-FL-GBW-3V.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET15768960 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Newhaven Display Intl" products on our website by using Enrgtech's Unique Manufacturing Part Number ET15768960.
Yes. We ship NHD-0420AZ-FL-GBW-3V Internationally to many countries around the world.
