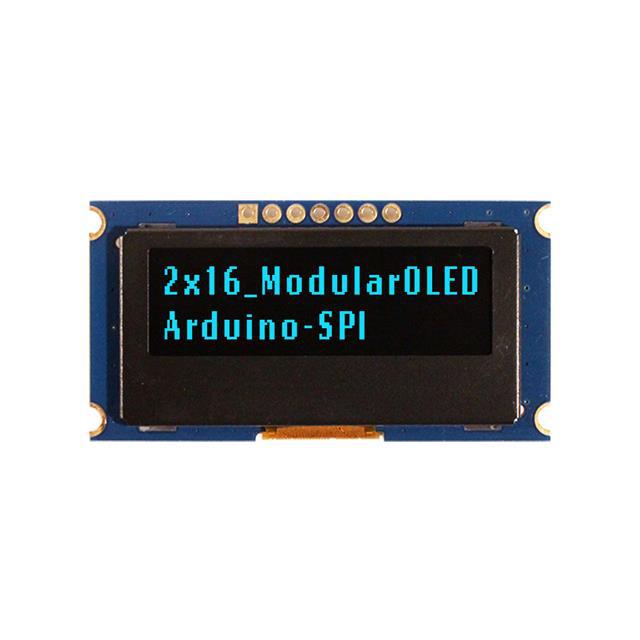

Newhaven Display Intl NHD-0216AW-SB3

NHD-0216AW-SB3 Newhaven Display Intl
Newhaven Display Intl

Product Information

Character Size:
4.45mm H x 1.82mm W
HTSUS:
8531.20.0020
RoHS Status:
ROHS3 Compliant
Character Format:
5 x 8 Dots
Display Format:
16 x 2
Operating Temperature:
-40°C ~ 85°C
Controller Type:
US2066
REACH Status:
REACH Unaffected
Interface:
SPI
Package:
Bulk
Viewing Area:
36.22mm L x 11.40mm W
Moisture Sensitivity Level (MSL):
Not Applicable
Text Color:
Blue
standardLeadTime:
16 Weeks
Background Color:
Black
Display Type:
OLED
Series:
-
Number of Characters:
32
Outline L x W x H:
49.20mm x 25.70mm x 4.50mm
Voltage - Supply:
2.4V ~ 5.5V
Base Product Number:
NHD-0216
Display Mode:
Passive
Dot Size:
0.34mm W x 0.53mm H
Backlight:
Without Backlight
ECCN:
EAR99
Checking for live stock

This is manufactured by Newhaven Display Intl. The manufacturer part number is NHD-0216AW-SB3. Its character size is 4.45mm h x 1.82mm w. It is assigned with possible HTSUS value of 8531.20.0020. The product is rohs3 compliant. It has a given 5 x 8 dots character format. It has a typical 16 x 2 display format. The product has -40°c ~ 85°c operating temperature range. The product has integrated with a us2066, a versatile and functional controller. In addition, it is reach unaffected. A bespoke product is spi interface. It is shipped in bulk package . Provides a 36.22mm l x 11.40mm w viewing area. Its typical moisture sensitivity level is not applicable. The text is provided in blue colour. It has a long 16 weeks standard lead time. The product has a classic black background colour. It features a remarkable oled display. Consists of 32 characters. Outline Specifications include in (L x W x H) - 49.20mm x 25.70mm x 4.50mm. It has optimum voltage supply of 2.4v ~ 5.5v. Moreover, it corresponds to nhd-0216, a base product number of the product. Typically has a passive display mode. Has a dot size of 0.34mm w x 0.53mm h. Backlight Options - without backlight. The product is designated with the ear99 code number.

pdf icon
NHD-0216AW-SB3(Datasheets)
