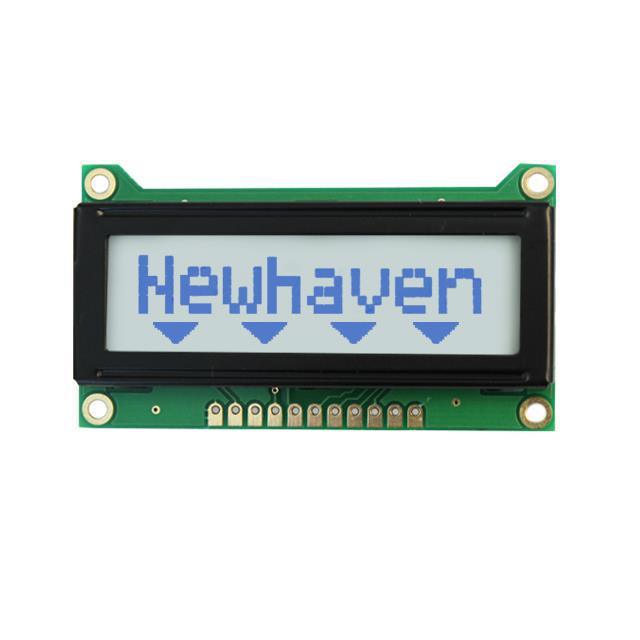

Newhaven Display Intl NHD-0108HZ-FSW-GBW

NHD-0108HZ-FSW-GBW Newhaven Display Intl
Newhaven Display Intl

Product Information

Character Size:
7.28mm H x 5.02mm W
HTSUS:
8531.20.0020
RoHS Status:
ROHS3 Compliant
Character Format:
5 x 8 Dots
Display Format:
8 x 1
Operating Temperature:
-20°C ~ 70°C
Controller Type:
SPLC780D OR ST7066U
REACH Status:
REACH Unaffected
Interface:
Parallel
Package:
Box
Viewing Area:
51.20mm L x 14.70mm W
Moisture Sensitivity Level (MSL):
Not Applicable
Text Color:
Blue
standardLeadTime:
16 Weeks
Background Color:
Gray
Display Type:
STN - Super-Twisted Nematic
Series:
-
Number of Characters:
8
Outline L x W x H:
60.70mm x 33.85mm x 6.25mm
Voltage - Supply:
3.1V ~ 3.5V
Base Product Number:
NHD-0108
Display Mode:
Transflective
Dot Size:
0.94mm W x 0.84mm H
Backlight:
LED - White
ECCN:
EAR99
Checking for live stock

This is manufactured by Newhaven Display Intl. The manufacturer part number is NHD-0108HZ-FSW-GBW. Its character size is 7.28mm h x 5.02mm w. It is assigned with possible HTSUS value of 8531.20.0020. The product is rohs3 compliant. It has a given 5 x 8 dots character format. It has a typical 8 x 1 display format. The product has -20°c ~ 70°c operating temperature range. The product has integrated with a splc780d or st7066u, a versatile and functional controller. In addition, it is reach unaffected. A bespoke product is parallel interface. It is shipped in box package . Provides a 51.20mm l x 14.70mm w viewing area. Its typical moisture sensitivity level is not applicable. The text is provided in blue colour. It has a long 16 weeks standard lead time. The product has a classic gray background colour. It features a remarkable stn - super-twisted nematic display. Consists of 8 characters. Outline Specifications include in (L x W x H) - 60.70mm x 33.85mm x 6.25mm. It has optimum voltage supply of 3.1v ~ 3.5v. Moreover, it corresponds to nhd-0108, a base product number of the product. Typically has a transflective display mode. Has a dot size of 0.94mm w x 0.84mm h. Backlight Options - led - white. The product is designated with the ear99 code number.

pdf icon
NHD-0108HZ-FSW-GBW User Guide(Datasheets)
pdf icon
LCD Solvent Precautions(Other Related Documents)
pdf icon
LCD Safe Handling Procedure(Other Related Documents)
