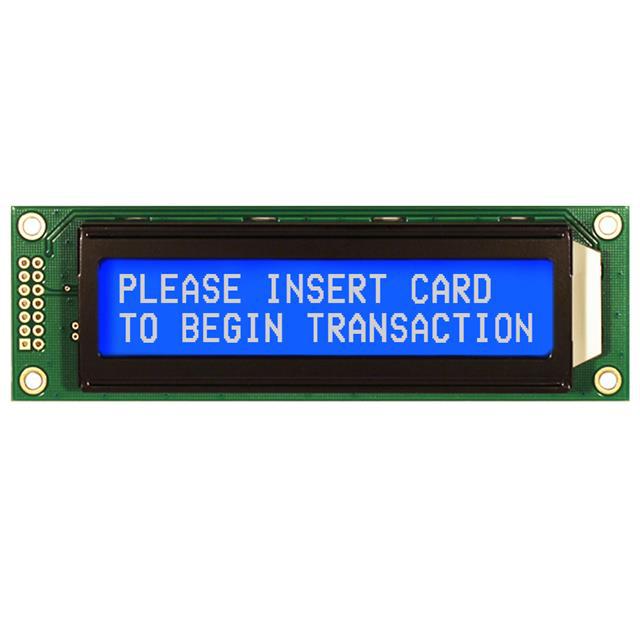

Newhaven Display Intl NHD-0220D3Z-NSW-BBW-V3

NHD-0220D3Z-NSW-BBW-V3 Newhaven Display Intl
Newhaven Display Intl

Product Information

Character Size:
5.55mm H x 3.20mm W
HTSUS:
8531.20.0020
RoHS Status:
ROHS3 Compliant
Character Format:
5 x 8 Dots
Display Format:
20 x 2
Operating Temperature:
-20°C ~ 70°C
Controller Type:
PIC16F697
REACH Status:
REACH Unaffected
edacadModel:
NHD-0220D3Z-NSW-BBW-V3 Models
Interface:
I²C, RS-232, SPI
Package:
Bulk
Viewing Area:
83.00mm L x 18.60mm W
Moisture Sensitivity Level (MSL):
Not Applicable
edacadModelUrl:
/en/models/2165861
Text Color:
White
standardLeadTime:
16 Weeks
Background Color:
Blue
Display Type:
STN - Super-Twisted Nematic
Series:
-
Number of Characters:
40
Outline L x W x H:
116.00mm x 37.00mm x 13.50mm
Voltage - Supply:
4.7V ~ 5.5V
Base Product Number:
NHD-0220
Display Mode:
Transmissive
Dot Size:
0.60mm W x 0.65mm H
Backlight:
LED - White
ECCN:
EAR99
Checking for live stock

This is manufactured by Newhaven Display Intl. The manufacturer part number is NHD-0220D3Z-NSW-BBW-V3. Its character size is 5.55mm h x 3.20mm w. It is assigned with possible HTSUS value of 8531.20.0020. The product is rohs3 compliant. It has a given 5 x 8 dots character format. It has a typical 20 x 2 display format. The product has -20°c ~ 70°c operating temperature range. The product has integrated with a pic16f697, a versatile and functional controller. In addition, it is reach unaffected. A bespoke product is i²c, rs-232, spi interface. It is shipped in bulk package . Provides a 83.00mm l x 18.60mm w viewing area. Its typical moisture sensitivity level is not applicable. The text is provided in white colour. It has a long 16 weeks standard lead time. The product has a classic blue background colour. It features a remarkable stn - super-twisted nematic display. Consists of 40 characters. Outline Specifications include in (L x W x H) - 116.00mm x 37.00mm x 13.50mm. It has optimum voltage supply of 4.7v ~ 5.5v. Moreover, it corresponds to nhd-0220, a base product number of the product. Typically has a transmissive display mode. Has a dot size of 0.60mm w x 0.65mm h. Backlight Options - led - white. The product is designated with the ear99 code number.

pdf icon
NHD-0220D3Z 22/Feb/2017(PCN Design/Specification)
pdf icon
NHD-0220D3Z-NSW-BBW-V3 Guide(Datasheets)
pdf icon
LCD Solvent Precautions(Other Related Documents)
pdf icon
LCD Safe Handling Procedure(Other Related Documents)
