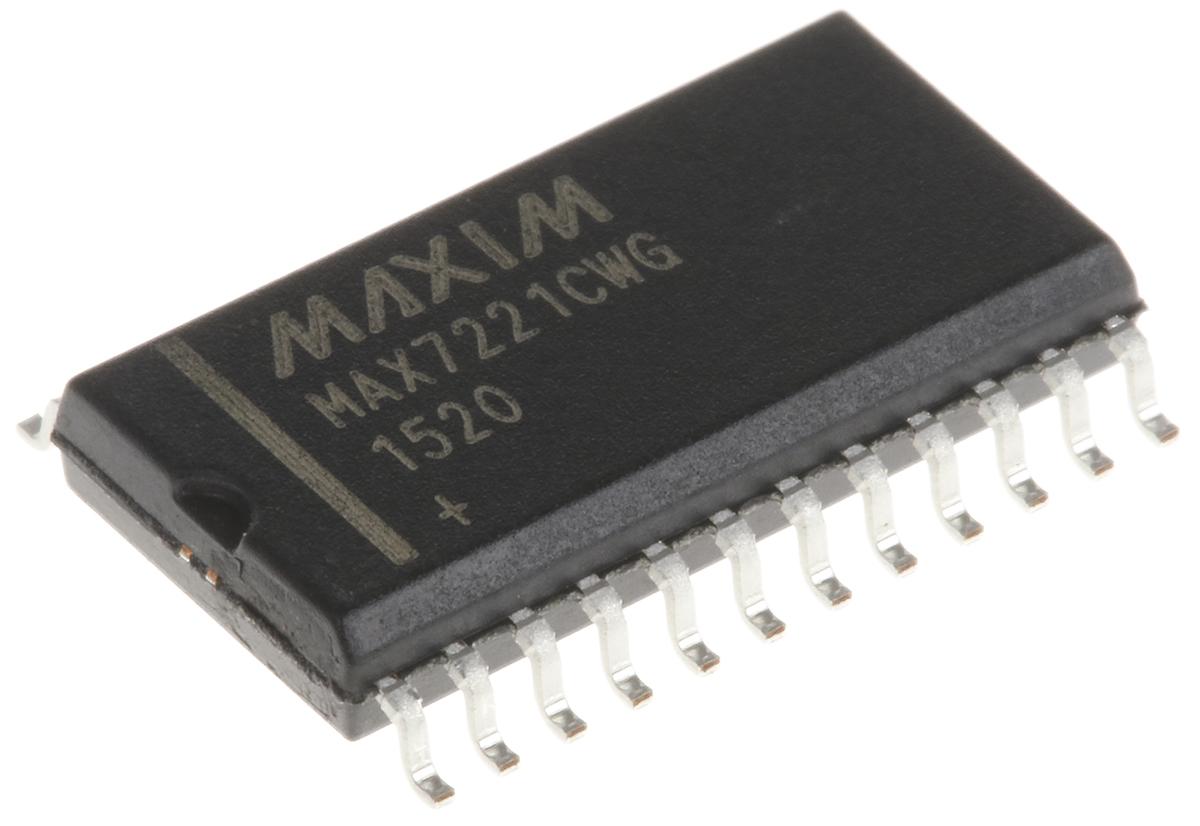

Maxim MAX7221CWG+, LED Driver, 8-Digits 64-Segments, 5 V, 24-Pin SOIC W

MAX7221CWG- Maxim MAX7221CWG+, LED Driver, 8-Digits 64-Segments, 5 V, 24-Pin SOIC W
Maxim Integrated

Product Information

Display Type:
LED
Mounting Type:
Surface Mount
Number of Segments:
64
Height:
2.35mm
Width:
7.6mm
Length:
15.6mm
Package Type:
SOIC-W
Supply Voltage:
(Maximum) 6 V
Minimum Operating Temperature:
0°C
Maximum Supply Current:
330mA
Number of Pins:
24
Maximum Operating Temperature:
+70°C
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
0°C ~ 70°C
Digits or Characters:
8 Digits
Package / Case:
24-SOIC (0.295", 7.50mm Width)
REACH Status:
REACH Unaffected
Current - Supply:
330 mA
Interface:
4-Wire Serial
Configuration:
7 Segment + DP
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
47 Weeks
Display Type:
LED
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
24-SOIC
Voltage - Supply:
4V ~ 5.5V
Base Product Number:
MAX7221
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Maxim LED Driver 8-Digits 64-Segments 5 V 24-Pin SOIC W manufactured by Maxim Integrated. The manufacturer part number is MAX7221CWG+. It features a remarkable led display. The product is available in surface mount configuration. It includes 64 segments . In addition, the height is 2.35mm. Furthermore, the product is 7.6mm wide. Its accurate length is 15.6mm. The package is a sort of soic-w. Features (maximum) 6 v supply voltage. Whereas, the minimum operating temperature of the product is 0°c. Moreover, it has a maximum 330ma supply current . It is comprised of 24 pins. It has a maximum operating temperature of +70°c. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has 0°c ~ 70°c operating temperature range. It consists of 8 digits. Moreover, the product comes in 24-soic (0.295", 7.50mm width). In addition, it is reach unaffected. The current - supply of a bespoke product is 330 ma. A bespoke product is 4-wire serial interface. The product is available in 7 segment + dp configuration. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 47 weeks standard lead time. 24-soic is the supplier device package value. It has optimum voltage supply of 4v ~ 5.5v. Moreover, it corresponds to max7221, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
MAX7219/MAX7221 Serially Interfaced, 8-Digit LED Display Drivers Data Sheet(Technical Reference)
pdf icon
MAX3311E/MAX3313E ±15kV ESD-Protected, 460kbps, 1μA, RS-232-Compatible Transceivers in μMAX Data Sheet(Technical Reference)
pdf icon
Maxim Integrated RoHS3 Cert(Environmental Information)
pdf icon
Red Phosphorous Certificate(Environmental Information)
pdf icon
Maxim Integrated REACH211(Environmental Information)
pdf icon
MAX7219,21(Datasheets)
pdf icon
Part Numbering System(Part Numbering Guide)
pdf icon
Using a PC to Experiment with the MAX7219 and MAX7221 LED Display Drivers(Mfg Application Notes)
pdf icon
LEDs Are Still Popular (and Improving) after All These Years(Mfg Application Notes)
pdf icon
One-Wire Network Controls Remote SPI Peripherals(Mfg Application Notes)
pdf icon
Eliminate Noise Through Proper Supply Bypass Filtering(Mfg Application Notes)
