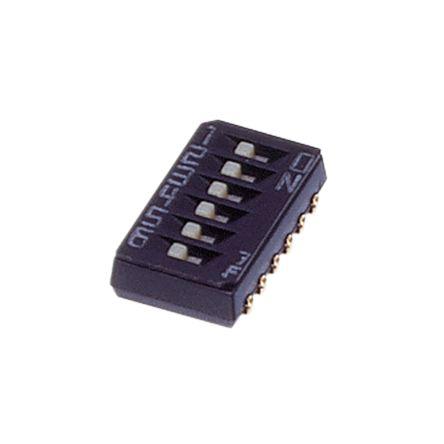

6 Way Surface Mount DIP Switch

CHS-06A 6 Way Surface Mount DIP Switch
Copal Electronics

Product Information

Minimum Operating Temperature:
-40°C
Mounting Type:
Surface Mount
Voltage Rating:
6 V dc, 24 V dc
Contact Current Rating:
25 mA@ 24 V dc, 100 mA@ 6 V dc
Operating Temperature Range:
-40 → +85°C
Dielectric Strength:
500V ac
Actuator Type:
Slide
Mechanical Life:
2000Cycles
Maximum Operating Temperature:
+85°C
Number of Positions:
6
Contact Material:
Copper Alloy
RoHs Compliant
Checking for live stock

This is 6 Way Surface Mount DIP Switch manufactured by Copal Electronics. The manufacturer part number is CHS-06A. Whereas, the minimum operating temperature of the product is -40°c. The product is available in surface mount configuration. Moreover, the product has a nominal 6 v dc, 24 v dc voltage rating. The rated contact current is 25 ma@ 24 v dc, 100 ma@ 6 v dc. The product has -40 → +85°c of operating temperature range. In addition, the product has 500v ac dielectric strength . The product carries slide actuator. The product also provide mechanical stability with 2000cycles. It has a maximum operating temperature of +85°c. The product carries possible position value of 6. The product is made from sturdy copper alloy materials.

pdf icon
CHS Series Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search CHS-06A on website for other similar products.
We accept all major payment methods for all products including ET14161268. Please check your shopping cart at the time of order.
You can order Copal Electronics brand products with CHS-06A directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in DIP & SIP Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of 6 Way Surface Mount DIP Switch. You can also check on our website or by contacting our customer support team for further order details on 6 Way Surface Mount DIP Switch.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14161268 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Copal Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14161268.
Yes. We ship CHS-06A Internationally to many countries around the world.
