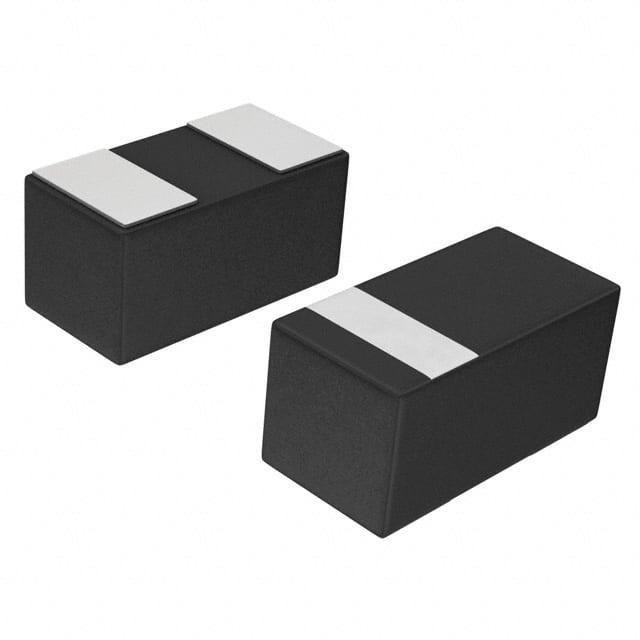

ON Semiconductor NSR15405NXT5G

NSR15405NXT5G ON Semiconductor
NSR15405NXT5G
ON Semiconductor

Product Information

Mounting Type:
Surface Mount
Peak Reverse Recovery Time:
33ns
Peak Non-Repetitive Forward Surge Current:
13A
Maximum Forward Voltage Drop:
540mV
Maximum Continuous Forward Current:
1.5A
Diode Technology:
Schottky
Package Type:
DSN
Number of Elements per Chip:
1
Diode Type:
Schottky
Diode Configuration:
Single
Pin Count:
2
Peak Reverse Repetitive Voltage:
40V
Manufacturer Standard Lead Time:
17 Weeks
Base Part Number:
NSR154
Detailed Description:
Diode Schottky 40V 1.5A (DC) Surface Mount 2-DSN (1.4x0.6)
Reverse Recovery Time (trr):
33ns
Current - Reverse Leakage @ Vr:
75µA @ 40V
Operating Temperature - Junction:
150°C (Max)
Mounting Type:
Surface Mount
Voltage - DC Reverse (Vr) (Max):
40V
Capacitance @ Vr, F:
85pF @ 2V, 1MHz
Voltage - Forward (Vf) (Max) @ If:
590mV @ 1.5A
Supplier Device Package:
2-DSN (1.4x0.6)
Packaging:
Cut Tape (CT)
Customer Reference:
Current - Average Rectified (Io):
1.5A (DC)
Package / Case:
0502 (1406 Metric)
Diode Type:
Schottky
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Manufacturer:
ON Semiconductor
RoHs Compliant
Checking for live stock

This is manufactured by ON Semiconductor. The manufacturer part number is NSR15405NXT5G. The product is available in surface mount configuration. Moreover, it has a peak reverse recovery time about 33ns . Moreover, a bespoke product has 13a peak non-repetitive forward surge current. It features 540mv of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 1.5a. The product utilizes schottky diode technology. The package is a sort of dsn. It consists of 1 elements per chip. It is designed with a schottky diode. The diode features a single configuration. It contains 2 pins. While having the peak reverse repetitive 40v. It has typical 17 weeks of manufacturer standard lead time. Base Part Number: nsr154. It features diode schottky 40v 1.5a (dc) surface mount 2-dsn (1.4x0.6). It has a trr (reverse recovery time) of 33ns. 75µa @ 40v is the reverse leakage value of a bespoke product. The product operate at temperatures ranging from 150°c (max). While it has maximum reverse voltage of 40v. Moreover, the product has a 85pf @ 2v, 1mhz capacitance. The product has a maximum forward voltage of 590mv @ 1.5a. 2-dsn (1.4x0.6) is the supplier device package value. In addition, cut tape (ct) is the available packaging type of the product. It features a 1.5a (dc) of average rectified current. Moreover, the product comes in 0502 (1406 metric). It has a robust speed of fast recovery =< 500ns, > 200ma (io). The on semiconductor's product offers user-desired applications.

pdf icon
NSR15405NXT5G, 1.5A, 40V Schottky Barrier Diode(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
NSR15405NXT5G(Datasheets)
