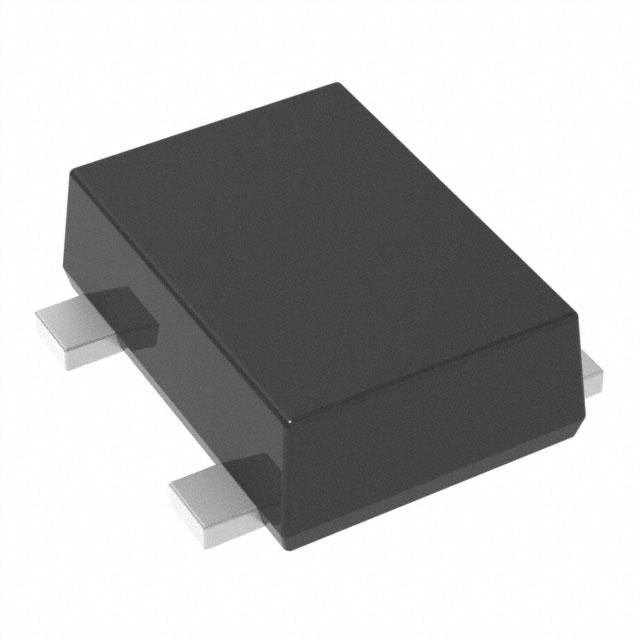

Panasonic Electronic Components MA4ZD0300L

MA4ZD0300L Panasonic Electronic Components
MA4ZD0300L
Panasonic Electronic Components

Product Information

HTSUS:
8541.10.0070
Package / Case:
4-SMD, Flat Leads
Diode Configuration:
2 Independent
Operating Temperature - Junction:
125°C (Max)
Speed:
Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):
1.2 ns
Voltage - Forward (Vf) (Max) @ If:
600 mV @ 100 mA
Package:
Tape & Reel (TR)
Voltage - DC Reverse (Vr) (Max):
45 V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Average Rectified (Io) (per Diode):
100mA (DC)
Current - Reverse Leakage @ Vr:
5 µA @ 40 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SMini4-F1
Technology:
Schottky
Base Product Number:
MA4ZD03
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electronic Components. The manufacturer part number is MA4ZD0300L. It is assigned with possible HTSUS value of 8541.10.0070. Moreover, the product comes in 4-smd, flat leads. The diode features a 2 independent configuration. The product operate at temperatures ranging from 125°c (max). It has a robust speed of small signal =< 200ma (io), any speed. It has a trr (reverse recovery time) of 1.2 ns. The product has a maximum forward voltage of 600 mv @ 100 ma. It is shipped in tape & reel (tr) package . While it has maximum reverse voltage of 45 v. Its typical moisture sensitivity level is 1 (unlimited). The average rectified current at per diode is 100ma (dc). 5 µa @ 40 v is the reverse leakage value of a bespoke product. The product is available in surface mount configuration. smini4-f1 is the supplier device package value. This product use schottky technology. Moreover, it corresponds to ma4zd03, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
MA4ZD03(Datasheets)
