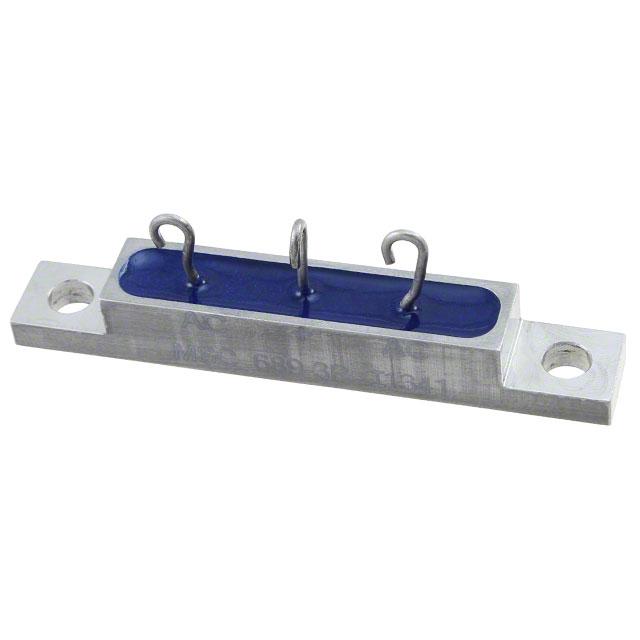

Microchip Technology 689-3P

689-3P Microchip Technology
Microchip Technology

Product Information

HTSUS:
8541.10.0080
RoHS Status:
RoHS non-compliant
Package / Case:
ND, Module
Diode Configuration:
1 Pair Common Cathode
Operating Temperature - Junction:
150°C (Max)
REACH Status:
REACH Unaffected
Reverse Recovery Time (trr):
500 ns
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Manufacturer:
Microchip Technology
Voltage - Forward (Vf) (Max) @ If:
1.2 V @ 10 A
Voltage - DC Reverse (Vr) (Max):
300 V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Average Rectified (Io) (per Diode):
15A
Current - Reverse Leakage @ Vr:
10 µA @ 300 V
Mounting Type:
Chassis Mount
Series:
-
Supplier Device Package:
ND
Packaging:
Bulk
Technology:
Standard
Base Product Number:
689-3
ECCN:
EAR99
Checking for live stock

This is manufactured by Microchip Technology. The manufacturer part number is 689-3P. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs non-compliant. Moreover, the product comes in nd, module. The diode features a 1 pair common cathode configuration. The product operate at temperatures ranging from 150°c (max). In addition, it is reach unaffected. It has a trr (reverse recovery time) of 500 ns. It has a robust speed of fast recovery =< 500ns, > 200ma (io). The microchip technology's product offers user-desired applications. The product has a maximum forward voltage of 1.2 v @ 10 a. While it has maximum reverse voltage of 300 v. Its typical moisture sensitivity level is 1 (unlimited). The average rectified current at per diode is 15a. 10 µa @ 300 v is the reverse leakage value of a bespoke product. The product is available in chassis mount configuration. nd is the supplier device package value. In addition, bulk is the available packaging type of the product. This product use standard technology. Moreover, it corresponds to 689-3, a base product number of the product. The product is designated with the ear99 code number.
