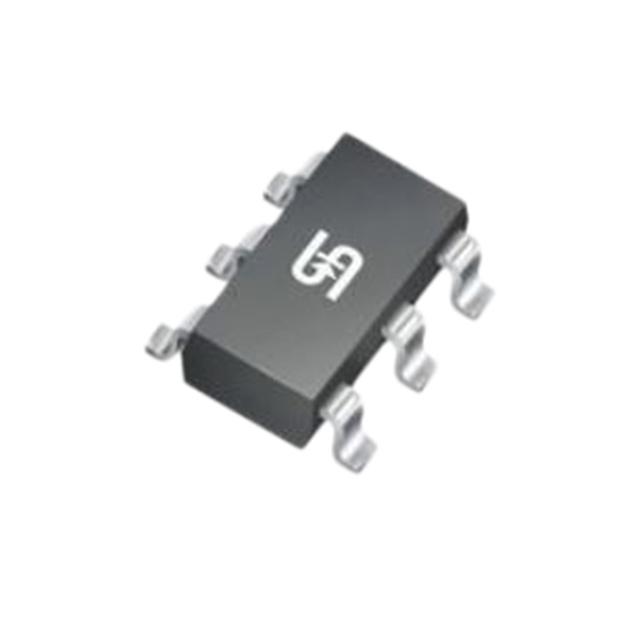

Taiwan Semiconductor Corporation BAT54CD REG

BAT54CD-REG Taiwan Semiconductor Corporation BAT54CD REG
Taiwan Semiconductor Corporation

Product Information

HTSUS:
8541.10.0070
RoHS Status:
ROHS3 Compliant
Package / Case:
6-TSSOP, SC-88, SOT-363
Diode Configuration:
2 Pair Common Cathode
Operating Temperature - Junction:
-65°C ~ 125°C
REACH Status:
REACH Unaffected
Reverse Recovery Time (trr):
5 ns
Speed:
Small Signal =< 200mA (Io), Any Speed
Voltage - Forward (Vf) (Max) @ If:
1 V @ 100 mA
Package:
Tape & Reel (TR)
Voltage - DC Reverse (Vr) (Max):
30 V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Average Rectified (Io) (per Diode):
200mA (DC)
Current - Reverse Leakage @ Vr:
2 µA @ 25 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SOT-363
Technology:
Schottky
Base Product Number:
BAT54
ECCN:
EAR99
Checking for live stock

This is manufactured by Taiwan Semiconductor Corporation. The manufacturer part number is BAT54CD REG. It is assigned with possible HTSUS value of 8541.10.0070. The product is rohs3 compliant. Moreover, the product comes in 6-tssop, sc-88, sot-363. The diode features a 2 pair common cathode configuration. The product operate at temperatures ranging from -65°c ~ 125°c. In addition, it is reach unaffected. It has a trr (reverse recovery time) of 5 ns. It has a robust speed of small signal =< 200ma (io), any speed. The product has a maximum forward voltage of 1 v @ 100 ma. It is shipped in tape & reel (tr) package . While it has maximum reverse voltage of 30 v. Its typical moisture sensitivity level is 1 (unlimited). The average rectified current at per diode is 200ma (dc). 2 µa @ 25 v is the reverse leakage value of a bespoke product. The product is available in surface mount configuration. sot-363 is the supplier device package value. This product use schottky technology. Moreover, it corresponds to bat54, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
BAT54(T,AD,CD,SD,BR)(Datasheets)
pdf icon
Taiwan Semi RoHS(Environmental Information)
pdf icon
Taiwan Semi REACH(Environmental Information)
