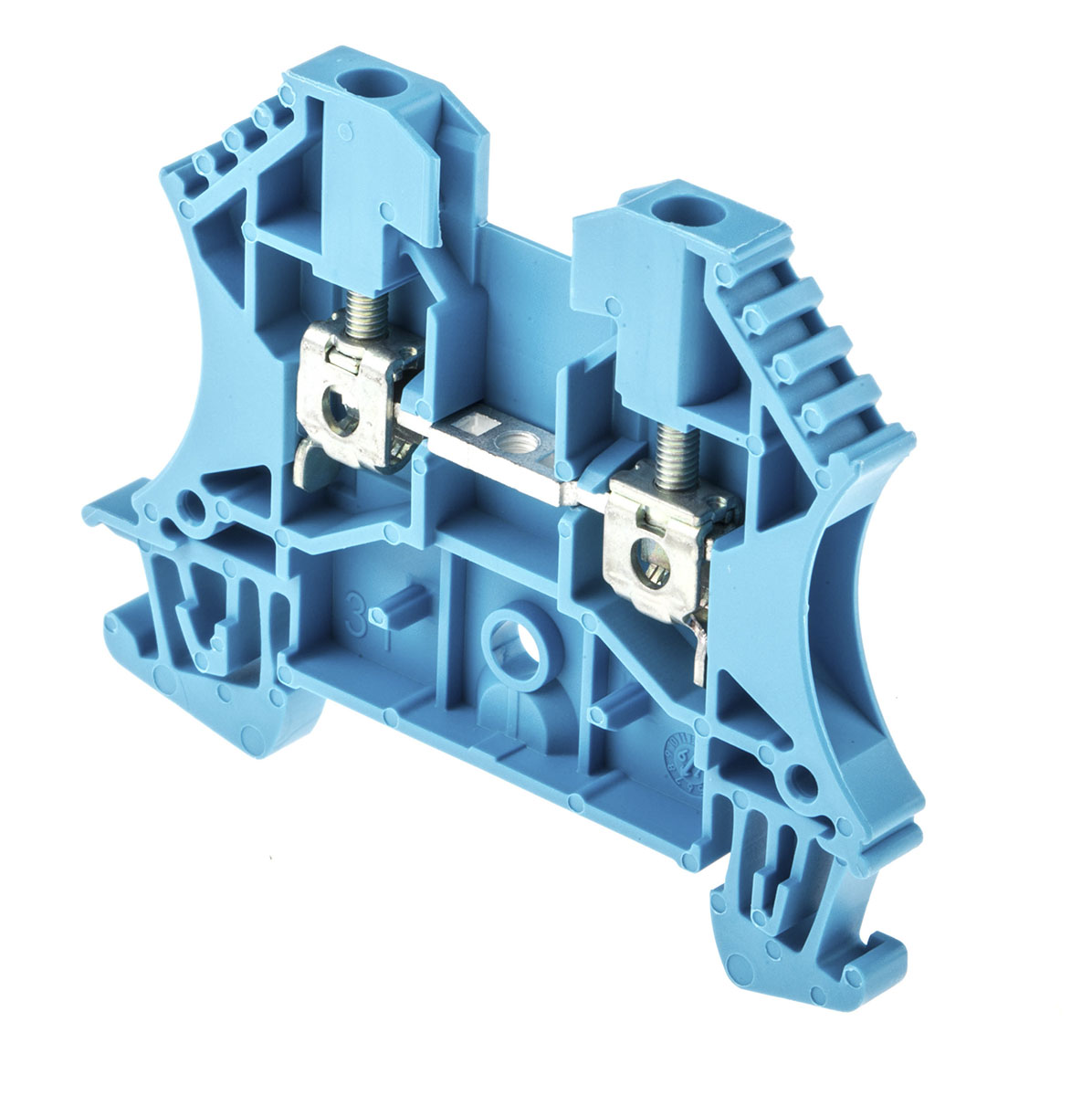

Weidmuller ATEX, WDU Series , 800 V Feed Through Terminal Block, Screw Down Termination

1020080000 Weidmuller ATEX, WDU Series , 800 V Feed Through Terminal Block, Screw Down Termination
Weidmüller

Product Information

Number of Levels:
Single
Current Rating:
32A
Voltage Rating:
800 V
Series:
WDU
Colour:
Blue
Hazardous Area Certification:
ATEX
American Wire Gauge:
30 → 12AWG
Minimum Operating Temperature:
-50°C
Termination Method:
Screw
Cable CSA:
2.5mm²
Maximum Operating Temperature:
+120°C
Manufacturer Standard Lead Time:
8 Weeks
Detailed Description:
Terminal Block Connector 2 Position Feed Through Blue 12-30 AWG
Wire Gauge or Range - mm²:
0.5-4mm²
Termination Style:
Screw
Material - Insulation:
Thermoplastic, Wemid
Type:
Feed Through
Number of Positions:
2
Material Flammability Rating:
UL94 V-0
Current - UL:
25A
Stripping Length:
10mm
Current - IEC:
24A
Number of Levels:
1
Wire Gauge or Range - AWG:
12-30 AWG
Voltage - UL:
600V
Terminal - Width:
5.1mm
Voltage - IEC:
800V
Color:
Blue
Series:
W
Packaging:
Box
Customer Reference:
Manufacturer:
Weidmüller
RoHs Compliant
Checking for live stock

This is Weidmuller ATEX WDU Series 800 V Feed Through Terminal Block Screw Down Termination manufactured by Weidmüller. The manufacturer part number is 1020080000. The product carries single levels. The product has a current rating of 32a. Moreover, the product has a nominal 800 v voltage rating. The product wdu, is a highly preferred choice for users. It has a decent blue colour. The product is certified with atex hazardous area certification. Features 30 → 12awg - American Wire Gauge. Whereas, the minimum operating temperature of the product is -50°c. It allows screw termination method. The cross section area of the cable includes 2.5mm². It has a maximum operating temperature of +120°c. It has typical 8 weeks of manufacturer standard lead time. It features terminal block connector 2 position feed through blue 12-30 awg. A 0.5-4mm² of wire gauge. Moreover, it has screw terminal style. It is designed from highly reliable thermoplastic, wemid insulating material. It comes in feed through configuration. The product carries possible position value of 2. It carries ul94 v-0 of material flammability rating. The typical current includes 25a. It has a stripping length of 10mm. An IEC current of 24a. The product carries 1 levels. While 12-30 awg is its range or wire gauge. While 600v is the typical voltage of the product. The built-in terminal is 5.1mm wide. The nominal voltage of the product is 800v. It has a classic blue colour. The product w, is a highly preferred choice for users. In addition, box is the available packaging type of the product. The weidmüller's product offers user-desired applications.

pdf icon
Instruction Sheet - 1020080000(Technical Reference)
pdf icon
WDU 2.5 blue standard terminal(Technical Reference)
pdf icon
Catalogue - Terminal Blocks(Technical Reference)
pdf icon
1020020000(Datasheets)
