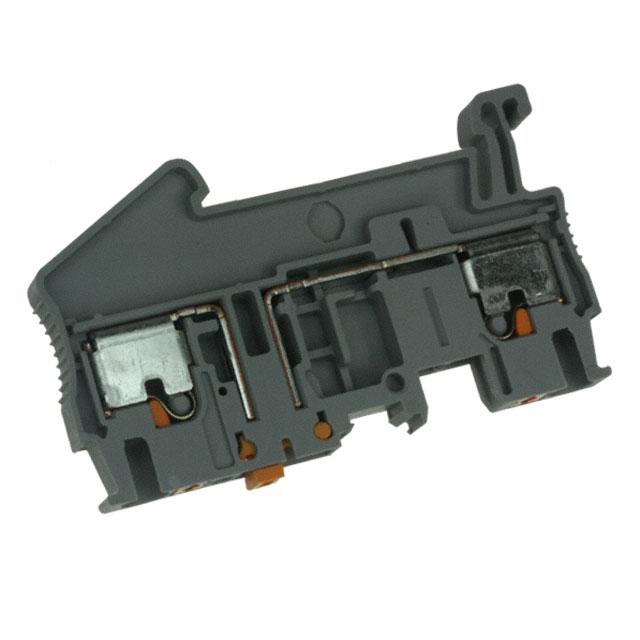

Phoenix Contact 3210156

3210156 Phoenix Contact
3210156
3210156
ET13267996
ET13267996
Phoenix Contact

Product Information

Number of Levels:
Single
Current Rating:
20A
Standards Met:
EAC
Voltage Rating:
400 V
Series:
PT 2.5-MT
Colour:
Grey
Model Number:
PT 2,5-MT
American Wire Gauge:
26 → 12AWG
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=40296&DisplayLogo=False
Termination Method:
Push In
Cable CSA:
0.14 → 4mm²
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-60°C
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Type:
Disconnect
Number of Positions:
2
Wire Gauge or Range - mm²:
0.14-4mm²
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Box
Stripping Length:
10mm
Moisture Sensitivity Level (MSL):
Not Applicable
Current - IEC:
20 A
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
300V
standardLeadTime:
8 Weeks
Terminal - Width:
5.2mm
Disconnect Type:
Switch, Knife
Voltage - IEC:
400V
Features:
-
Color:
Gray
Series:
CLIPLINE PT
Fuse Type:
-
Current - UL:
20 A
Number of Levels:
1
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 3210156. The product carries single levels. The product has a current rating of 20a. The product complies with all safety standards, such as eac. Moreover, the product has a nominal 400 v voltage rating. The product pt 2.5-mt, is a highly preferred choice for users. It has a decent grey colour. It has a model number pt 2,5-mt. Features 26 → 12awg - American Wire Gauge. It allows push in termination method. The cross section area of the cable includes 0.14 → 4mm². It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -60°c. It is assigned with possible HTSUS value of 8536.69.8000. The product is rohs3 compliant. Moreover, it has push in, spring terminal style. It is designed from highly reliable polyamide (pa), nylon insulating material. It comes in disconnect configuration. The product carries possible position value of 2. A 0.14-4mm² of wire gauge. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in box package . It has a stripping length of 10mm. Its typical moisture sensitivity level is not applicable. An IEC current of 20 a. While 12-26 awg is its range or wire gauge. While 300v is the typical voltage of the product. It has a long 8 weeks standard lead time. The built-in terminal is 5.2mm wide. Disconnect type - switch, knife. The nominal voltage of the product is 400v. It has a classic gray colour. The product clipline pt, is a highly preferred choice for users. The typical current includes 20 a. The product carries 1 levels. The product is designated with the ear99 code number.

pdf icon
3210156 Datasheet(Technical Reference)
pdf icon
Les incontournables Phoenix Contact(Technical Reference)
pdf icon
Line Drawing - 3210156(Technical Reference)
pdf icon
3210156(Datasheets)
pdf icon
PIT to PT 27/Feb/2012(PCN Design/Specification)
pdf icon
Multiple Devices Design 06/Apr/2018(PCN Design/Specification)
