Phoenix Contact 3270135

3270135 Phoenix Contact
3270135
Phoenix Contact

Product Information

American Wire Gauge:
14 → 26AWG
Current Rating:
8A
Voltage Rating:
250 V
Series:
PTRV 8 BU/RDWH
Colour:
Blue
Model Number:
PTRV 8 BU/RDWH
Termination Method:
Push In
Cable CSA:
0.14 → 2.5mm²
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Operating Temperature:
-
Type:
Marshalling Connector
Number of Positions:
32
Wire Gauge or Range - mm²:
0.14-2.5mm²
Height (Max):
3.740" (95.00mm)
REACH Status:
REACH Unaffected
Housing Color:
Blue
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Stripping Length:
10mm
Moisture Sensitivity Level (MSL):
Not Applicable
Current - IEC:
8 A
Number of Levels:
8
Wire Gauge or Range - AWG:
14-26 AWG
Voltage - UL:
300 V
standardLeadTime:
6 Weeks
Terminal - Width:
8.3mm
Voltage - IEC:
250 V
Features:
-
Mounting Type:
DIN Rail
Series:
CLIPLINE PT
Length:
3.937" (100.00mm)
Packaging:
Bulk
Current - UL:
10 A
ECCN:
EAR99
RoHs Compliant
Checking for live stock

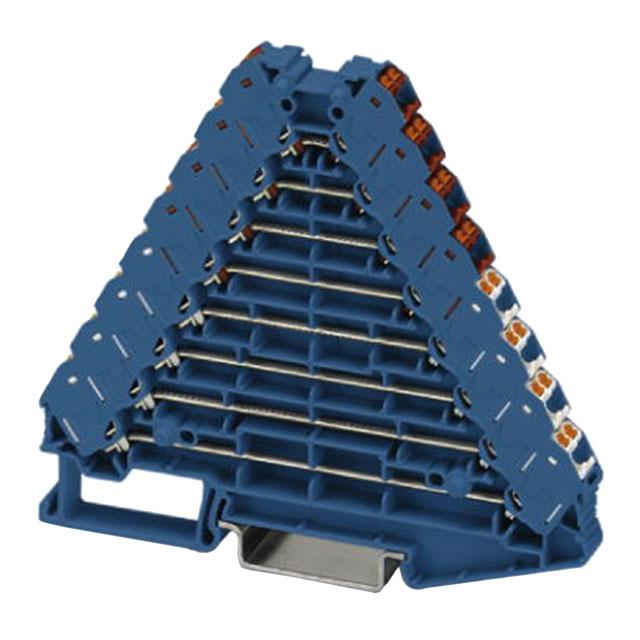

This is manufactured by Phoenix Contact. The manufacturer part number is 3270135. Features 14 → 26awg - American Wire Gauge. The product has a current rating of 8a. Moreover, the product has a nominal 250 v voltage rating. The product ptrv 8 bu/rdwh, is a highly preferred choice for users. It has a decent blue colour. It has a model number ptrv 8 bu/rdwh. It allows push in termination method. The cross section area of the cable includes 0.14 → 2.5mm². It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has push in, spring terminal style. It is designed from highly reliable polyamide (pa), nylon insulating material. It comes in marshalling connector configuration. The product carries possible position value of 32. A 0.14-2.5mm² of wire gauge. Additionally, the 3.740" (95.00mm) is the maximum height of the product. In addition, it is reach unaffected. It has an integral blue housing colour. It carries ul94 v-0 of material flammability rating. The phoenix contact's product offers user-desired applications. It has a stripping length of 10mm. Its typical moisture sensitivity level is not applicable. An IEC current of 8 a. The product carries 8 levels. While 14-26 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It has a long 6 weeks standard lead time. The built-in terminal is 8.3mm wide. The nominal voltage of the product is 250 v. The product is available in din rail configuration. The product clipline pt, is a highly preferred choice for users. Its accurate length is 3.937" (100.00mm). In addition, bulk is the available packaging type of the product. The typical current includes 10 a. The product is designated with the ear99 code number.

pdf icon
Datasheet - 3270135(Technical Reference)
pdf icon
3270135(Datasheets)
