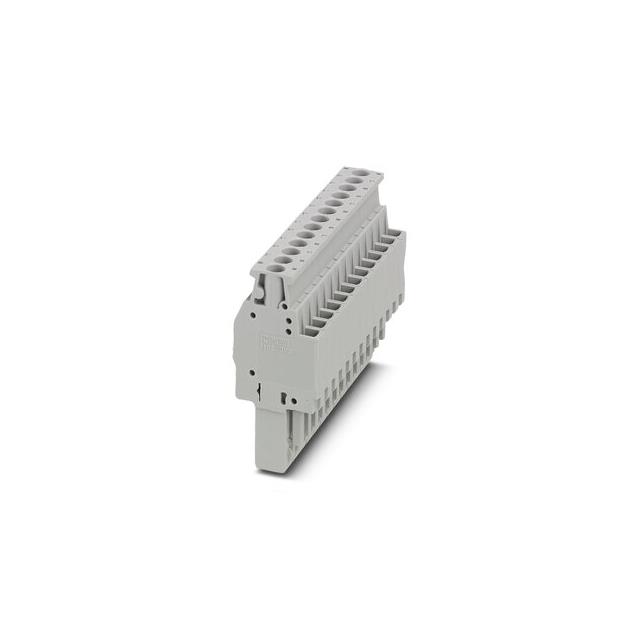

Phoenix Contact PCB Terminal Block, 13 Way/Pole, Screw Terminals, 0.14 → 4 mm², Polyamide, 500 V

3045525 Phoenix Contact PCB Terminal Block, 13 Way/Pole, Screw Terminals, 0.14 → 4 mm², Polyamide, 500 V
3045525
Phoenix Contact

Product Information

Number of Contacts:
13
Current Rating:
24A
Mounting Type:
DIN Rail
Voltage Rating:
500 V
Series:
Combi Pluggable Solutions
Material:
Polyamide
Pluggable Terminal Block Type:
Plug
Termination Method:
Screw
Wire Size:
26 → 12 AWG
HTSUS:
8536.90.4000
Termination Style:
Screw
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-60°C ~ 105°C
Screw Size:
M3
Wire Strip Length:
9mm
Type:
Plug, Female Sockets
Number of Positions:
13
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.14-4mm²
title:
3045525
Plug Wire Entry:
-
Insulation Height:
1.850" (47.00mm)
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Current - IEC:
24A
Number of Levels:
1
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
600 V
Torque - Screw:
0.5-0.6 Nm (4.4-5.3 Lb-In)
standardLeadTime:
8 Weeks
Contact Mating Finish:
-
Voltage - IEC:
500 V
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Color:
Gray
Series:
CLIPLINE COMBI UPBV
Positions Per Level:
13
Packaging:
Bulk
Header Orientation:
-
Current - UL:
20 A
Pitch:
0.205" (5.20mm)
ECCN:
EAR99
Contact Material:
-
RoHs Compliant
Checking for live stock

This is PCB Terminal Block 13 Way/Pole Screw Terminals 0.14 → 4 mm² Polyamide 500 V manufactured by Phoenix Contact. The manufacturer part number is 3045525. The product contains 13 contacts. The product has a current rating of 24a. The product is available in din rail configuration. Moreover, the product has a nominal 500 v voltage rating. The product combi pluggable solutions, is a highly preferred choice for users. The product is made from highly stable and reliable polyamide. It allows screw termination method. Concerning wire's size, it is 26 → 12 awg. It is assigned with possible HTSUS value of 8536.90.4000. Moreover, it has screw terminal style. The product also features robust polyamide (pa), nylon housing material. The product has -60°c ~ 105°c operating temperature range. It is available in screw size of m3. The typical length of the wire strip is 9mm. It comes in plug, female sockets configuration. The product carries possible position value of 13. A 0.14-4mm² of wire gauge. 1.850" (47.00mm) of insulation height. It carries ul94 v-0 of material flammability rating. The phoenix contact's product offers user-desired applications. An IEC current of 24a. The product carries 1 levels. While 12-26 awg is its range or wire gauge. While 600 v is the typical voltage of the product. It carries torque - screw values of 0.5-0.6 nm (4.4-5.3 lb-in). It has a long 8 weeks standard lead time. The nominal voltage of the product is 500 v. The product is available in free hanging (in-line) configuration. It has a classic gray colour. The product clipline combi upbv, is a highly preferred choice for users. It has 13 positions each level. In addition, bulk is the available packaging type of the product. The typical current includes 20 a. Moreover, the product is 0.205" (5.20mm). The product is designated with the ear99 code number.
