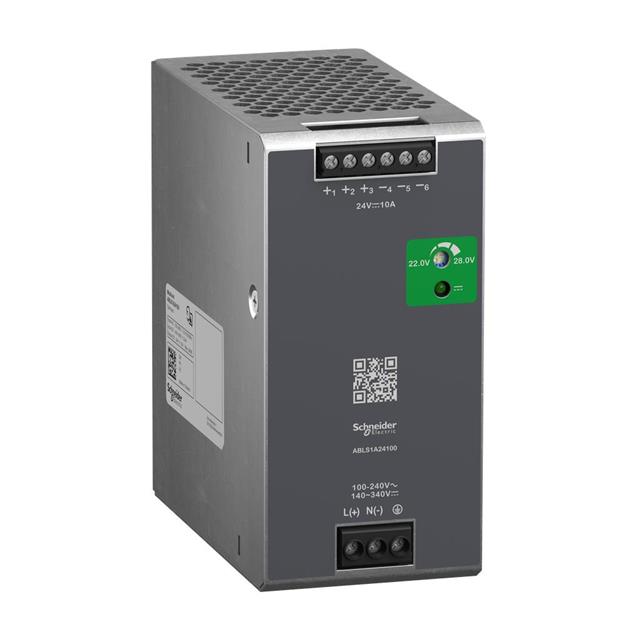

Schneider Electric ABLS1A Regulated Switch Mode DIN Rail Power Supply 100-240 V, 140-340 V Input, 24V Output, 10A 240W

ABLS1A24100 Schneider Electric ABLS1A Regulated Switch Mode DIN Rail Power Supply 100-240 V, 140-340 V Input, 24V Output, 10A 240W
ABLS1A24100
ABLS1A24100
ET21592732
Schneider Electric

Product Information

Maximum Temperature:
70° C
AC or DC Output Voltage:
dc
Dimensions:
117.6 x 123.6 x 60mm
Minimum Temperature:
40° C
AC or DC Input Voltage:
ac, dc
Width:
60mm
Electrical Phase:
1
Type:
Switched Mode
Load Regulation:
< 1%
Efficiency:
> 88%
Input Voltage:
100→240 V ac / 140→340V dc
Ripple And Noise:
< 120mV
Depth:
117.6mm
Better World Verification:
Green Premium
Better World Product:
Yes
Output Current:
10A
Mounting Type:
DIN Rail Mount
Series:
ABLS1A
Height:
123.6mm
Output Voltage:
24V dc
Power Rating:
240W
HTSUS:
8504.40.9530
RoHS Status:
ROHS3 Compliant
Power (Watts):
240W
Current - Output (Max):
10A
Approval Agency:
CB, CE, CSA, CuL, EAC, EN, IEC, KC, NEC Class 2, UL
Input Type:
AC or DC
Applications:
ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
Voltage - Output 1:
24V
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
88%
Manufacturer:
Schneider Electric
DC Voltage - Input (Max):
340V
DC Voltage - Input (Min):
140V
Minimum Load Required:
-
Size / Dimension:
4.63" L x 2.36" W x 4.87" H (117.6mm x 60.0mm x 123.6mm)
standardLeadTime:
8 Weeks
Voltage - Isolation:
3 kV
AC Voltage - Input:
100 ~ 240 VAC
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
IP20, Universal Input
Series:
-
Operating Temperature:
-20°C ~ 70°C (With Derating)
Packaging:
Box
Standard Number:
60950-1; 62368-1
Number of Outputs:
1
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is ABLS1A Regulated Switch Mode DIN Rail Power Supply 100-240 V 140-340 V Input 24V Output 10A 240W manufactured by Schneider Electric. The manufacturer part number is ABLS1A24100. The product has 70° c maximum temperature. It has a/an dc output voltage . The given dimensions of the product include 117.6 x 123.6 x 60mm. While its minimum temperature is 40° c. It has ac, dc input voltage. Furthermore, the product is 60mm wide. Its electrical phase configuration includes 1. It comes in switched mode configuration. Load Regulation - < 1%. It is a highly efficient product with an > 88% of high efficiency. Its input voltage is 100→240 v ac / 140→340v dc. Carries < 120mv ripple and noise. The product comes in 117.6mm depth. Better World Verification Options - green premium. Is it a better world product? yes. It carries 10a output current. The product is available in din rail mount configuration. The product abls1a, is a highly preferred choice for users. In addition, the height is 123.6mm. Features a 24v dc output voltage. Feature 240w of power rating. It is assigned with possible HTSUS value of 8504.40.9530. The product is rohs3 compliant. The product features power and watts of 240w. The maximum product's output current is 10a. It is approved by cb, ce, csa, cul, eac, en, iec, kc, nec class 2, ul. It carries ac or dc input type. The product is widely employed in ite (commercial). It has a 24v output voltage. It is a highly efficient product with an 88% of high efficiency. The schneider electric's product offers user-desired applications. It has 340v of maximum DC input voltage. While the minimum DC input voltage is 140v. The product's diameters include 4.63" l x 2.36" w x 4.87" h (117.6mm x 60.0mm x 123.6mm). It has a long 8 weeks standard lead time. 3 kv of isolation voltage. The product has an AC input voltage range of 100 ~ 240 vac. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include ip20, universal input. The product has -20°c ~ 70°c (with derating) operating temperature range. In addition, box is the available packaging type of the product. Standard number include: 60950-1; 62368-1. Additionally, the product is supplied with 1 outputs. The product is designated with the ear99 code number.

pdf icon
ALBS1A Intsruction Sheet(Technical Reference)
pdf icon
Catalogue ABLS1A24100(Technical Reference)
pdf icon
Datasheet ABLS1A24100(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
Green Premium Ecolabel(Technical Reference)
pdf icon
ABLS1A24100 Datasheet(Datasheets)
pdf icon
Control Panel Solutions(Other Related Documents)
