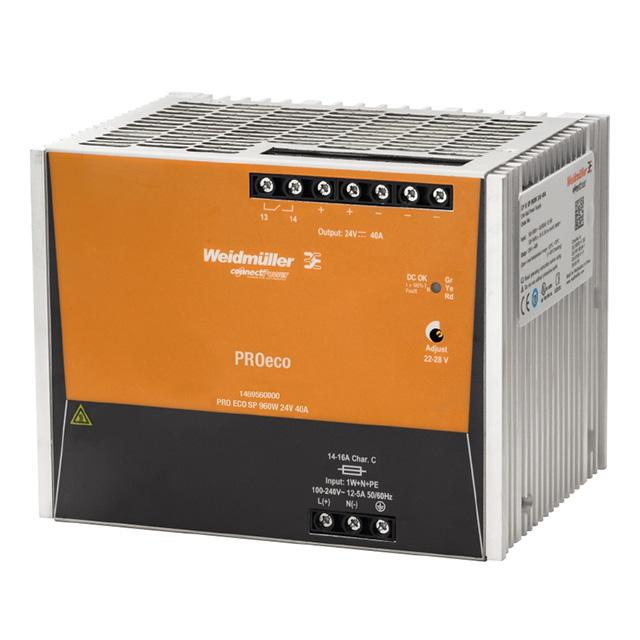

PRO ECO DIN Rail Power Supply, 960W, 24V dc/ 40A

1469560000 PRO ECO DIN Rail Power Supply, 960W, 24V dc/ 40A
1469560000
Weidmüller

Product Information

Number of Outputs:
1
Ripple And Noise:
<50mV
Output Current:
40A
Standards Met:
61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, VDE 0100-410/DIN57100-410, VDE 0106-101
Mounting Type:
DIN Rail Mount
Maximum Temperature:
+70°C
Series:
PRO ECO
Electrical Phase:
3
Special Features:
Compact Size, Easy to Maintain, Flexible, High Efficiency
AC or DC Input Voltage:
ac, dc
Height:
125mm
Width:
160mm
Depth:
100mm
MTBF:
>500000h
Output Voltage:
24V dc
Minimum Temperature:
-25°C
AC or DC Output Voltage:
dc
Power Rating:
960W
Type:
Switched Mode
Input Voltage:
320 → 575 V ac / 450 → 800V dc
Manufacturer Standard Lead Time:
16 Weeks
Size / Dimension:
6.30" L x 4.72" W x 4.92" H (160.0mm x 120.0mm x 125.0mm)
Detailed Description:
Enclosed AC DC Converters 1 Output 24V 40A 320 ~ 575 VAC, 450 ~ 800 VDC Input
Voltage - Isolation:
3kV
Features:
Adjustable Output, IP20
Mounting Type:
DIN Rail
Applications:
Industrial, ITE (Commercial)
Series:
PRO ECO3 (960W)
Customer Reference:
Voltage - Output 1:
24V
Packaging:
Bulk
Efficiency:
90%
Power (Watts):
960W
Current - Output (Max):
40A
Approval Agency:
CE, cULus, EAC, TUV
Voltage - Input:
320 ~ 575 VAC, 450 ~ 800 VDC
Operating Temperature:
-25°C ~ 70°C
Type:
Enclosed
Number of Outputs:
1
Manufacturer:
Weidmüller
Checking for live stock

This is PRO ECO DIN Rail Power Supply 960W 24V dc/ 40A manufactured by Weidmüller. The manufacturer part number is 1469560000. Additionally, the product is supplied with 1 outputs. Carries <50mv ripple and noise. It carries 40a output current. The product complies with all safety standards, such as 61000-4-4, 61000-4-5, 61000-4-6, ce certified, culus listed, eac, en 50178/vde 0160, en 55022, en 60204, en 60950, en 61000-3-2, en 61000-4-11, en 61000-4-2, en 61000-4-3, en 61000-4-8, iec 1709, iec 60068-2-27, iec 60068-2-6, iec 61558-2-16, vde 0100-410/din57100-410, vde 0106-101. The product is available in din rail mount configuration. The product has +70°c maximum temperature. The product pro eco, is a highly preferred choice for users. Its electrical phase configuration includes 3. The product also provides special features, such as compact size, easy to maintain, flexible, high efficiency. It has ac, dc input voltage. In addition, the height is 125mm. Furthermore, the product is 160mm wide. The product comes in 100mm depth. The MTBF values include >500000h. Features a 24v dc output voltage. While its minimum temperature is -25°c. It has a/an dc output voltage . Feature 960w of power rating. It comes in switched mode configuration. Its input voltage is 320 → 575 v ac / 450 → 800v dc. It has typical 16 weeks of manufacturer standard lead time. The product's diameters include 6.30" l x 4.72" w x 4.92" h (160.0mm x 120.0mm x 125.0mm). It features enclosed ac dc converters 1 output 24v 40a 320 ~ 575 vac, 450 ~ 800 vdc input. 3kv of isolation voltage. The splendid features of the product include adjustable output, ip20. The product is available in din rail configuration. The product is widely employed in industrial, ite (commercial). The product pro eco3 (960w), is a highly preferred choice for users. It has a 24v output voltage. In addition, bulk is the available packaging type of the product. It is a highly efficient product with an 90% of high efficiency. The product features power and watts of 960w. The maximum product's output current is 40a. It is approved by ce, culus, eac, tuv. The possible product's input voltage is 320 ~ 575 vac, 450 ~ 800 vdc. The product has -25°c ~ 70°c operating temperature range. It comes in enclosed configuration. The weidmüller's product offers user-desired applications.
