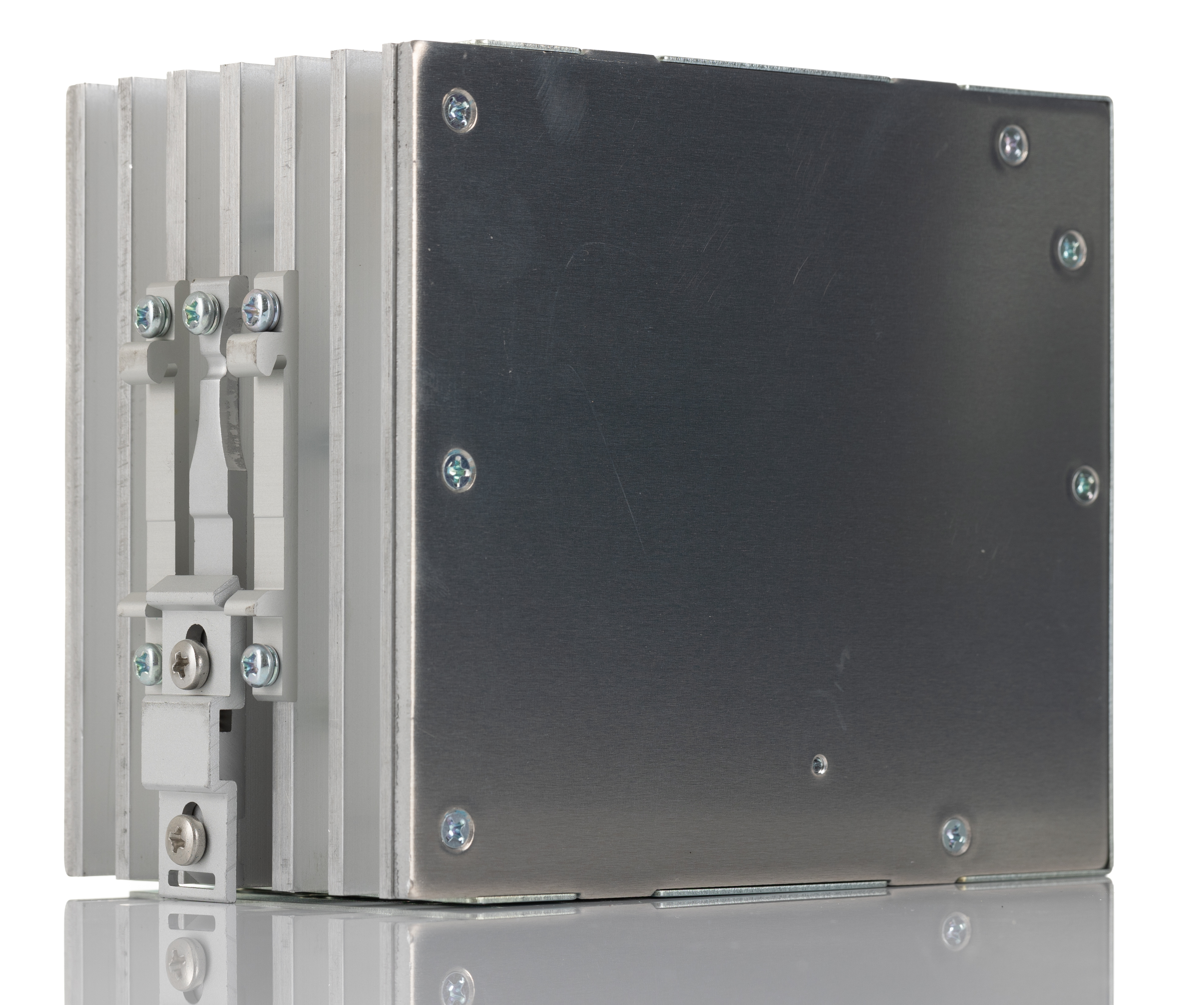

PRO MAX DIN Rail Power Supply, 480W, 24V dc/ 20A

1478140000 PRO MAX DIN Rail Power Supply, 480W, 24V dc/ 20A
1478140000
1478140000
Weidmüller

Product Information

Maximum Temperature:
+70°C
AC or DC Output Voltage:
dc
Minimum Temperature:
-25°C
AC or DC Input Voltage:
ac, dc
Width:
90mm
MTBF:
>500000h
Electrical Phase:
1
Type:
Switched Mode
Standards Met:
61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, cULus Recognized, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61204, IEC 61558-2-16, TUV, VDE 0100-410/DIN57100-410, VDE 0106-101
Efficiency:
92%
Input Voltage:
85 → 277 V ac / 80 → 370V dc
Number of Outputs:
1
Output Voltage Adjustment Range:
29.5V
Ripple And Noise:
<50mV
Depth:
150mm
Special Features:
Durable, High Performance
Mounting Type:
DIN Rail Mount
Output Current:
20A
Series:
PRO MAX
Height:
130mm
Output Voltage:
24V dc
Power Rating:
480W
Manufacturer Standard Lead Time:
16 Weeks
Size / Dimension:
5.91" L x 3.54" W x 5.12" H (150.0mm x 90.0mm x 130.0mm)
Detailed Description:
Enclosed AC DC Converters 1 Output 24V 20A 85 ~ 277 VAC, 80 ~ 370 VDC Input
Voltage - Isolation:
4kV
Features:
Adjustable Output, IP20
Mounting Type:
DIN Rail
Applications:
ITE (Commercial)
Series:
PRO MAX (480W)
Customer Reference:
Voltage - Output 1:
24V
Packaging:
Bulk
Efficiency:
92%
Power (Watts):
480W
Current - Output (Max):
20A
Approval Agency:
CE, cULus, cuRus, EAC, TUV
Voltage - Input:
85 ~ 277 VAC, 80 ~ 370 VDC
Operating Temperature:
-25°C ~ 70°C
Type:
Enclosed
Number of Outputs:
1
Manufacturer:
Weidmüller
Checking for live stock

This is PRO MAX DIN Rail Power Supply 480W 24V dc/ 20A manufactured by Weidmüller. The manufacturer part number is 1478140000. The product has +70°c maximum temperature. It has a/an dc output voltage . While its minimum temperature is -25°c. It has ac, dc input voltage. Furthermore, the product is 90mm wide. The MTBF values include >500000h. Its electrical phase configuration includes 1. It comes in switched mode configuration. The product complies with all safety standards, such as 61000-4-4, 61000-4-5, 61000-4-6, ce certified, culus listed, culus recognized, eac, en 50178/vde 0160, en 55022, en 60204, en 60950, en 61000-3-2, en 61000-4-11, en 61000-4-2, en 61000-4-3, en 61000-4-8, iec 1709, iec 60068-2-27, iec 60068-2-6, iec 61204, iec 61558-2-16, tuv, vde 0100-410/din57100-410, vde 0106-101. It is a highly efficient product with an 92% of high efficiency. Its input voltage is 85 → 277 v ac / 80 → 370v dc. Additionally, the product is supplied with 1 outputs. It has 29.5v of output voltage adjustment range. Carries <50mv ripple and noise. The product comes in 150mm depth. The product also provides special features, such as durable, high performance. The product is available in din rail mount configuration. It carries 20a output current. The product pro max, is a highly preferred choice for users. In addition, the height is 130mm. Features a 24v dc output voltage. Feature 480w of power rating. It has typical 16 weeks of manufacturer standard lead time. The product's diameters include 5.91" l x 3.54" w x 5.12" h (150.0mm x 90.0mm x 130.0mm). It features enclosed ac dc converters 1 output 24v 20a 85 ~ 277 vac, 80 ~ 370 vdc input. 4kv of isolation voltage. The splendid features of the product include adjustable output, ip20. The product is available in din rail configuration. The product is widely employed in ite (commercial). The product pro max (480w), is a highly preferred choice for users. It has a 24v output voltage. In addition, bulk is the available packaging type of the product. The product features power and watts of 480w. The maximum product's output current is 20a. It is approved by ce, culus, curus, eac, tuv. The possible product's input voltage is 85 ~ 277 vac, 80 ~ 370 vdc. The product has -25°c ~ 70°c operating temperature range. It comes in enclosed configuration. The weidmüller's product offers user-desired applications.
